IFC viewer (BIM feature)

OpenProject BIM includes a very powerful IFC viewer to show and interact with building models in 2D & 3D.

IFC-Files can be uploaded and shown directly within your Web-Browser without installing any additional software on your computer.

Basics

The BCF Module has included a very powerful IFC viewer. Here is a short overview of available user actions:

IFC Viewer Overview

  1. IFC Model Viewer to have a look at the building model directly within OpenProject BIM.
  2. IFC Model Tree to see the IFC Model Structure and show / hide elements.
  3. The OpenProject toolbar shows the most important user actions like creating new (BIM) issues, Import & Export BCF files, Change OpenProject View and upload & download IFC-Models
  4. The View Cube to rotate the building model.
  5. The IFC-Viewer toolbar to interact with the building model (e.g. change perspective, hide/ show elements, select elements & slice the building model)

Import and export IFC models

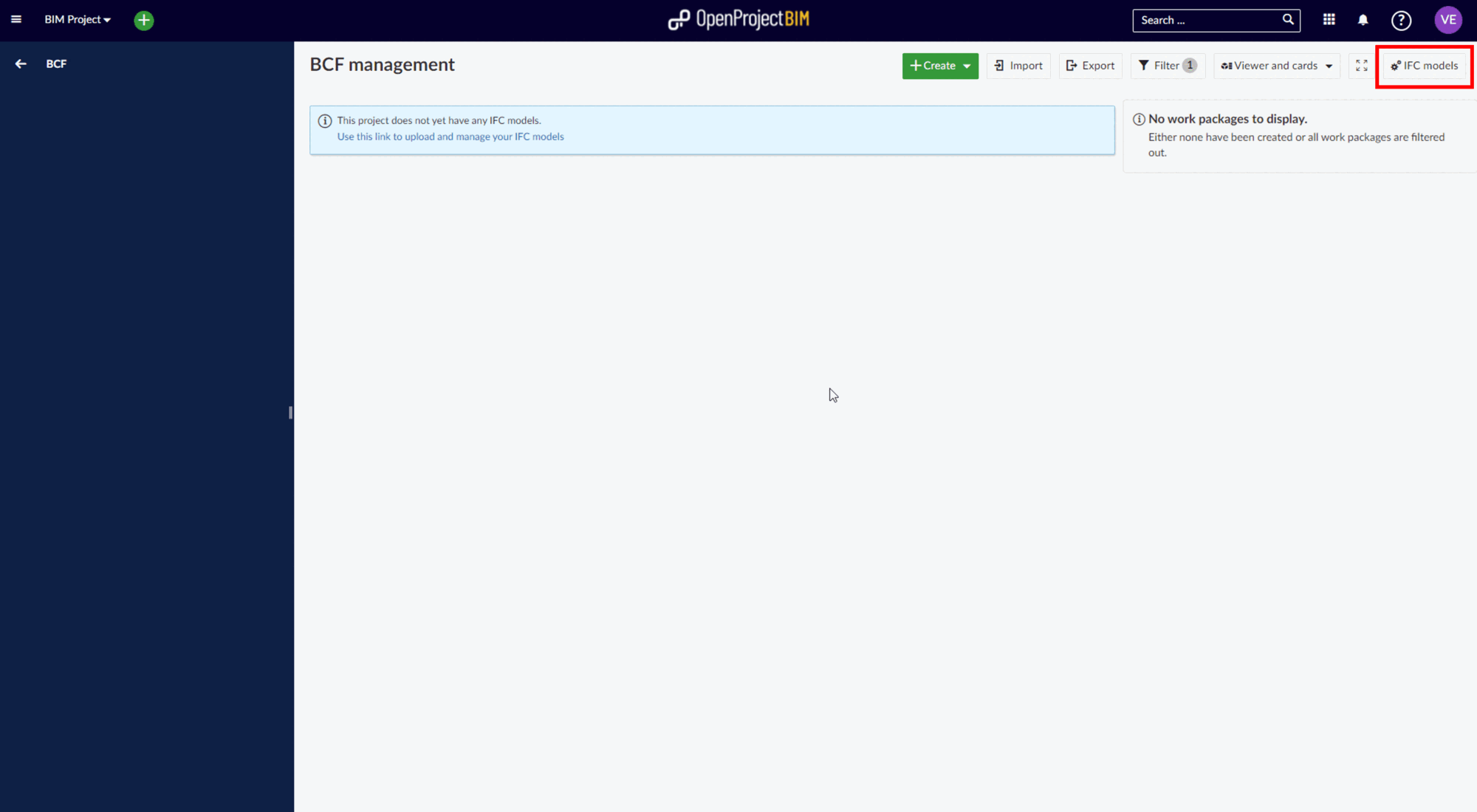

Within the BCF module you are able to manage your IFC files. You are able to upload new building models and download already existing files. Just Click on the “IFC-Models”-Button within the OpenProject Toolbar.

Import and Export IFC Models

To upload your first IFC model click on the green “+ IFC Model” - Button. A new explorer Window will be opened. Just navigate to the folder where your latest building model is saved.

Import IFC Model

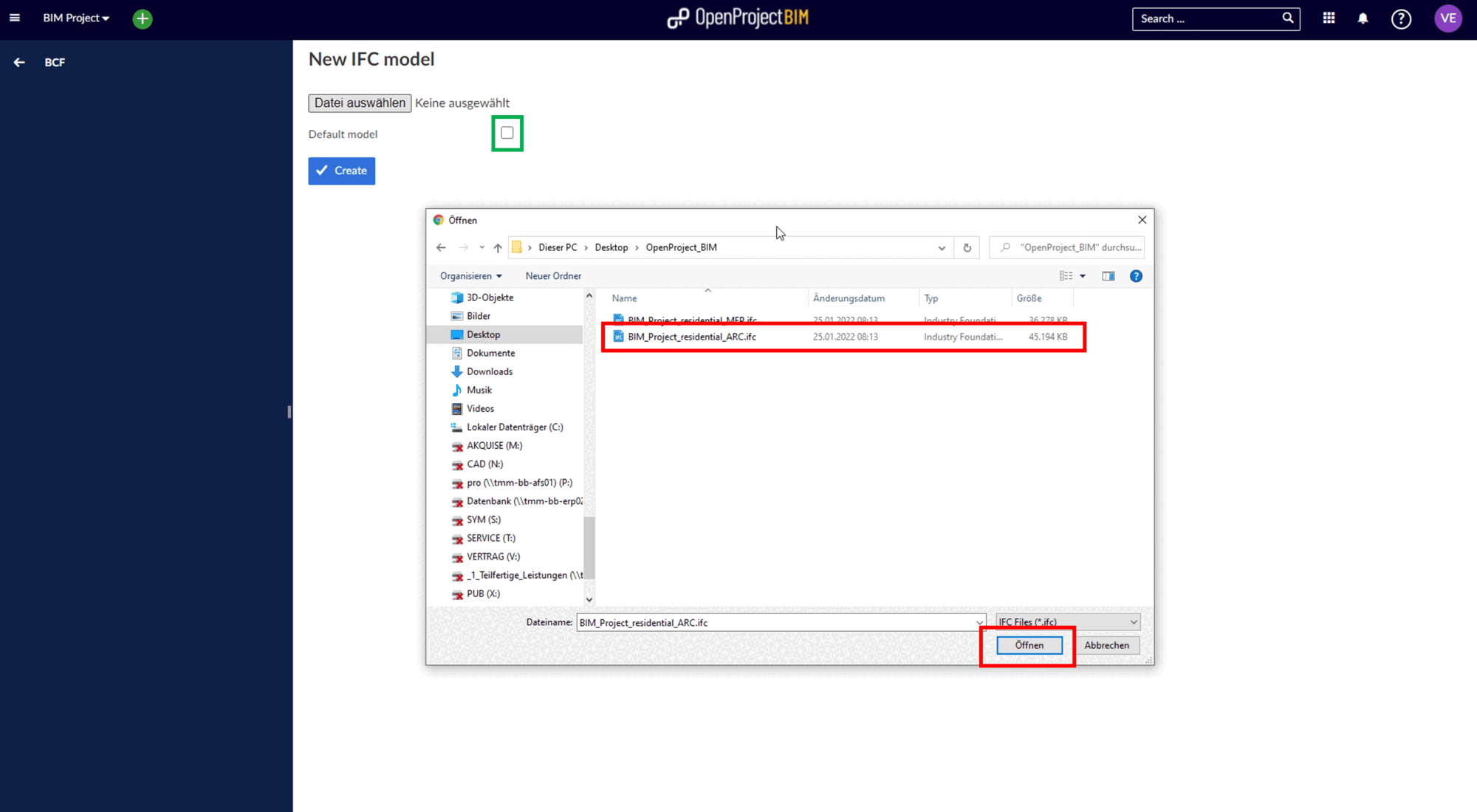

Select the file you want and confirm your upload. You also the choice to set the new model as “Default model”. All default models (multiple models can be set as default) are initially shown if you relaod the BCF module. You are able to change this setting later as well.

Set Model as Default

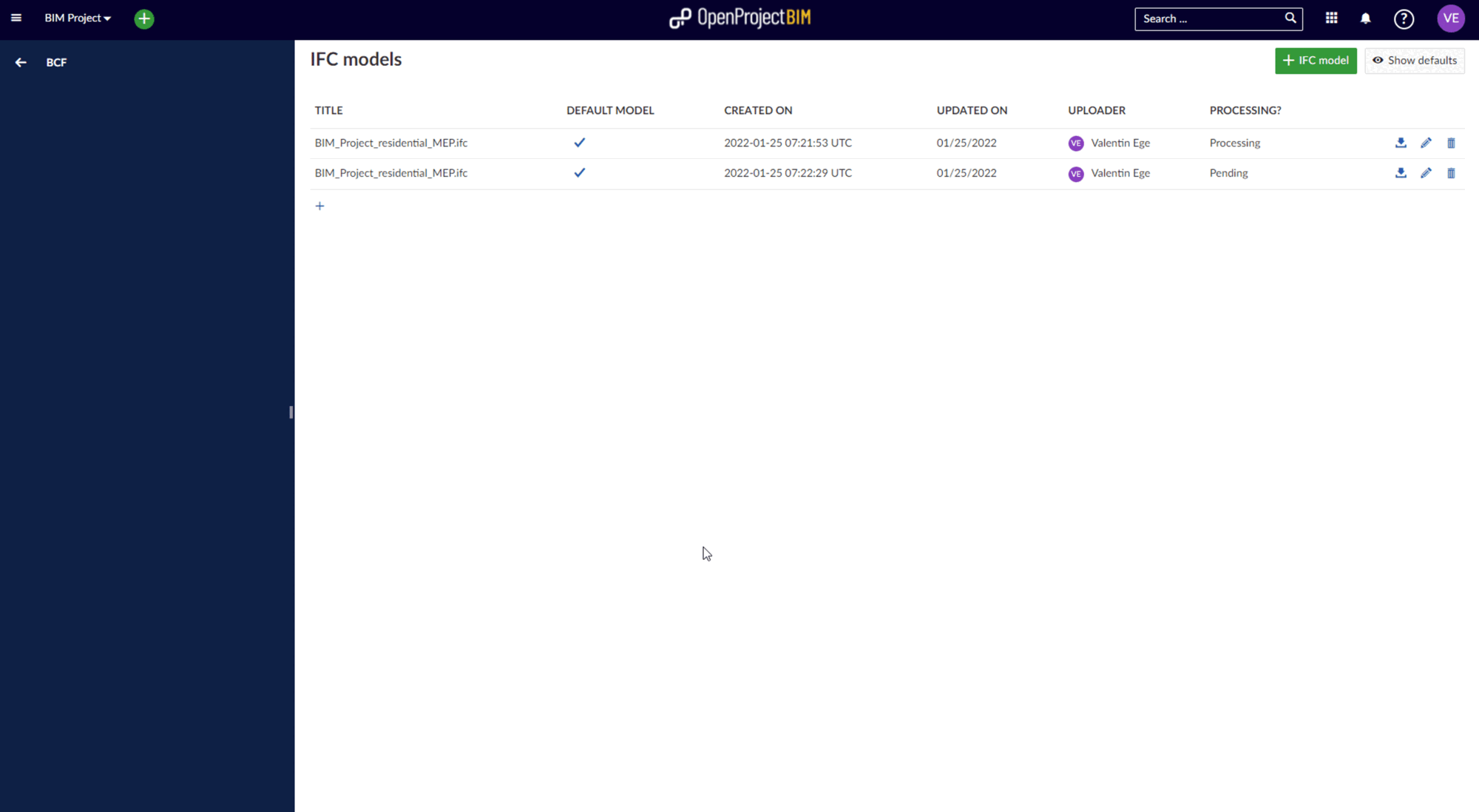

After uploading a building model you get an overview of all models within the “model management”. There you are able to see their current upload status, rename the model, delete or download the existing models.

BIM Model Management

If there already exist a model in project, you don’t have to open the “model manager” to upload other models. You are able to add more models by clicking the “Add-Button” in the IFC Model Tree.

Add a new IFC Model

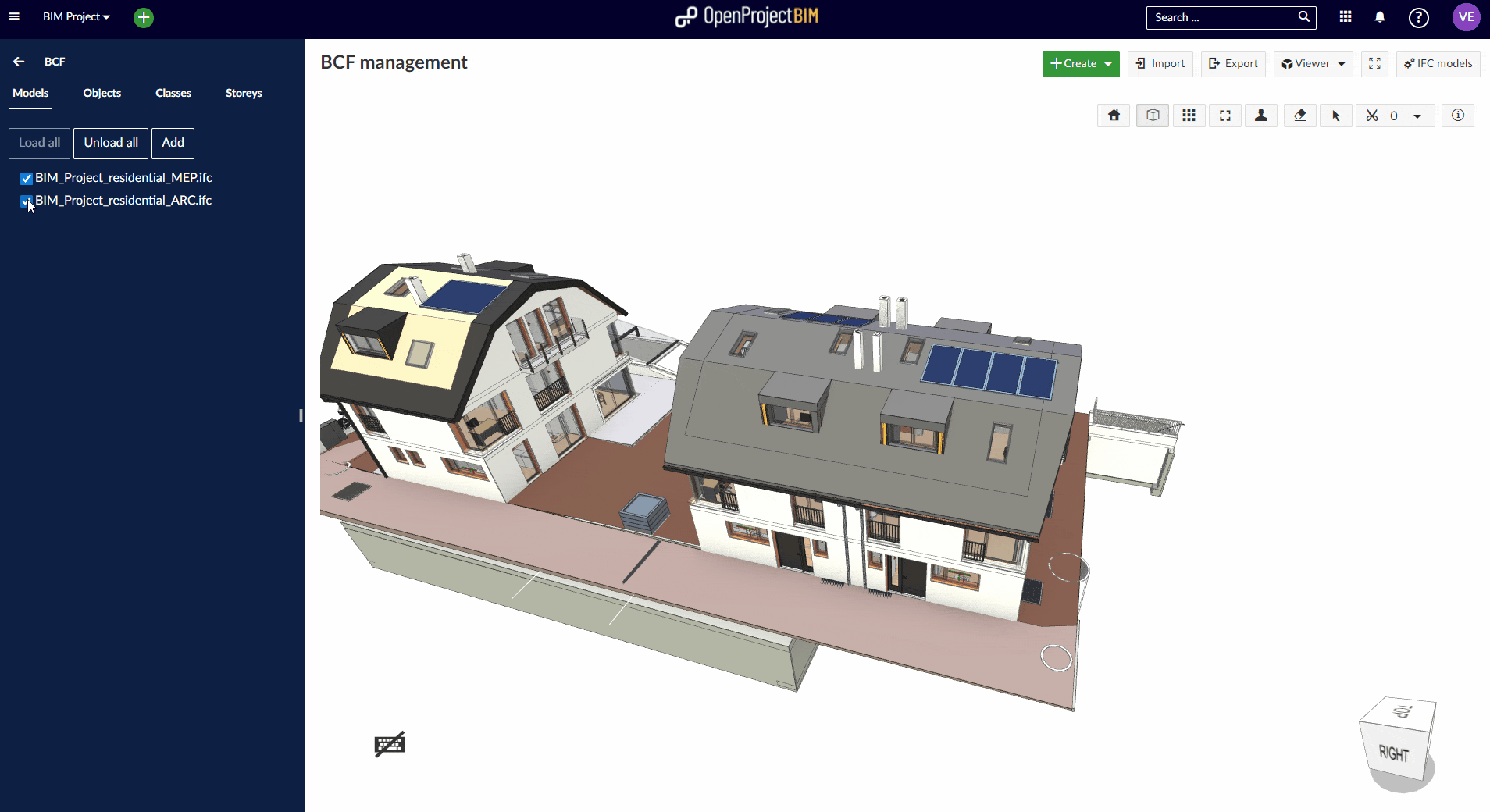

Remember: If there are multiple models you are able to hide the whole model or single elements by using the checkbox within model tree.

Hide_Model

How to rotate the building model?

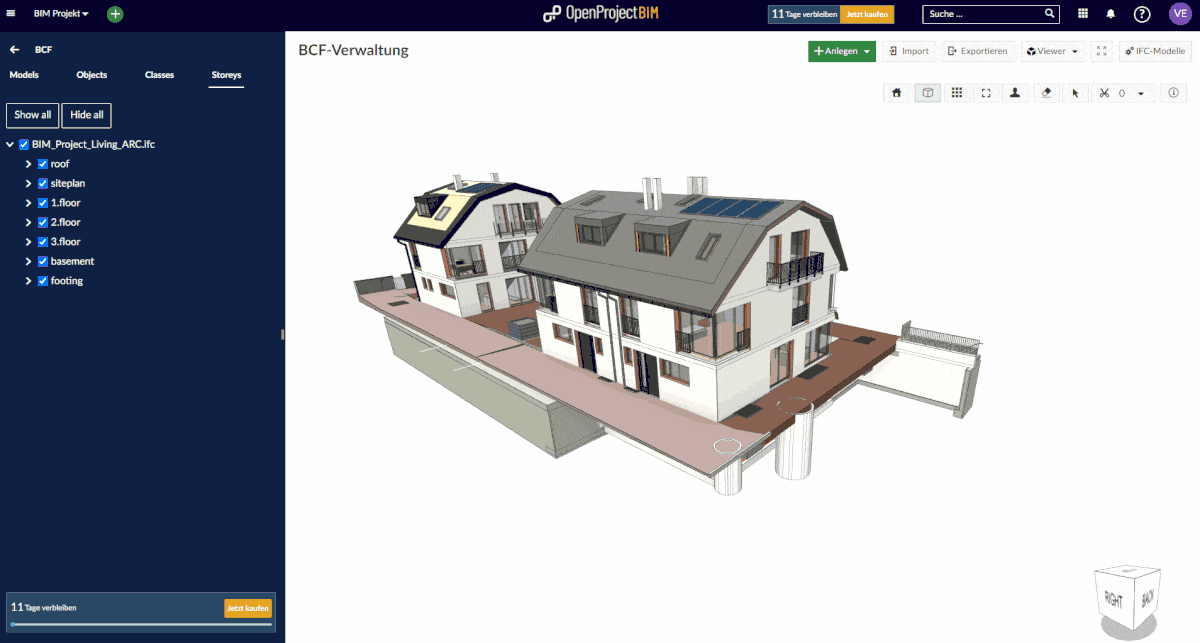

To rotate the IFC model you either left-click on the building viewer and rotate the building model by panning your cursor or use the View Cube in the right bottom corner for navigation.

Model_Rotation

IFC-viewer toolbar

The IFC-Viewer toolbar has many functions which are described below. The user actions all relate to the viewer and can be started by clicking on the button.

Reset view

Reset View

If your building model (or objects within the model) is rotated, zoomed or cut and you want to reset your current view this function will help you. All you have to do is press the button once and your your view will be reset to the default.

Reset_view_button

2D / 3D view

2D View

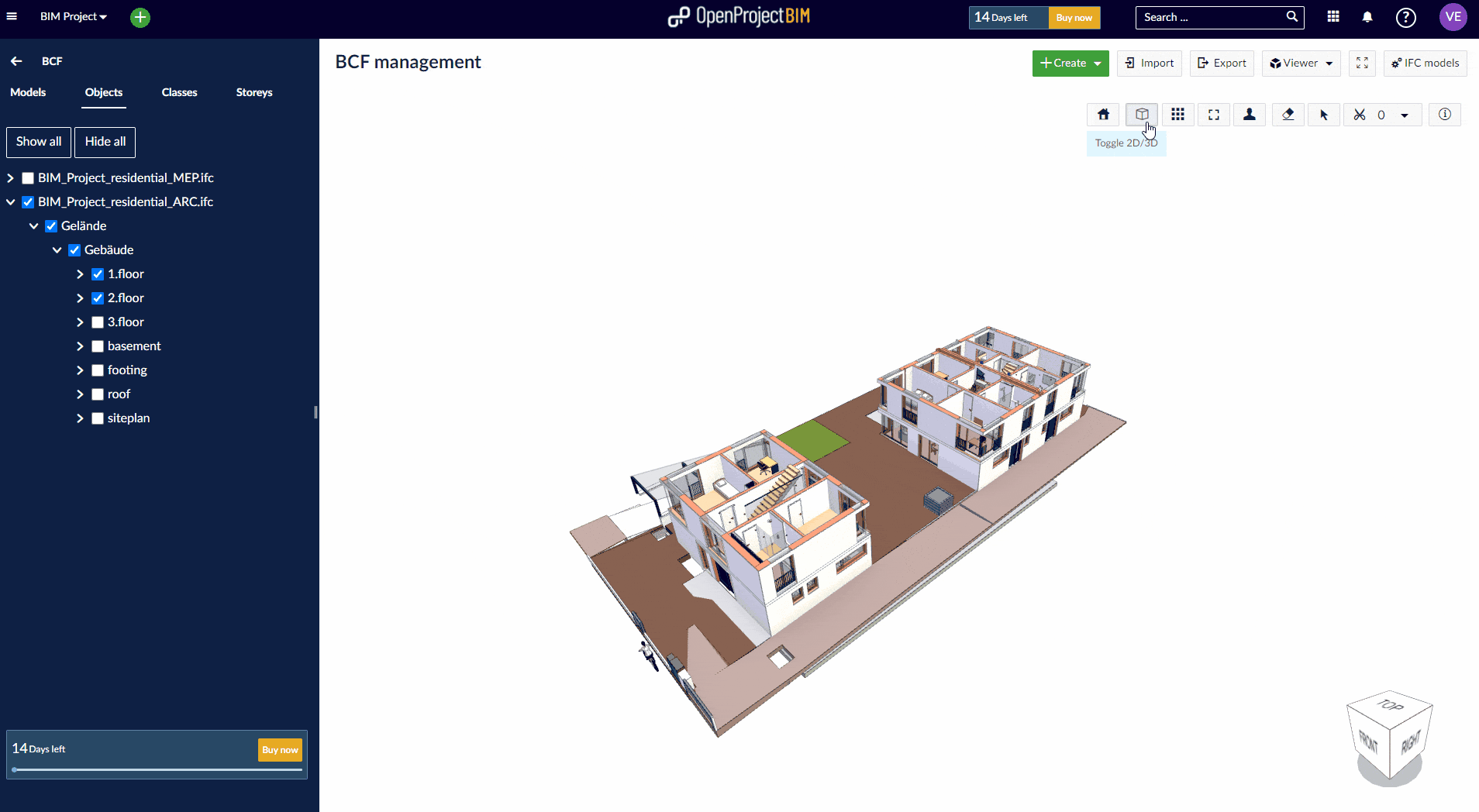

If your building model can easily be shown in 2D or 3D. This function is very popular to have a deeper look into the building (e.g. to see the floorplan). To use this function in the best way, you are able to combine the 2D view with hiding elements (like it is shown below).

2D_3D

Orthographic view

Orthographic Button

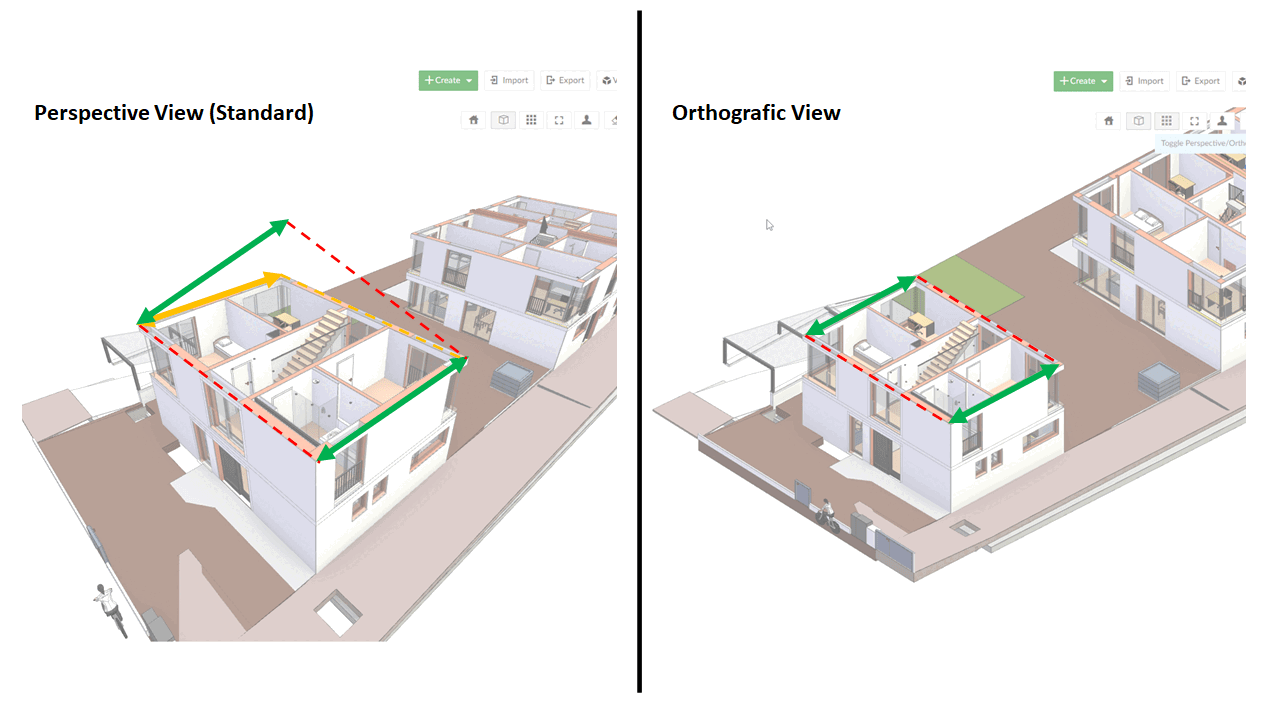

The default behavior of the OpenProject BIM Model Viewer is a perspective view. The perspective camera gives you more information about depth. Distant objects are smaller than nerby ones. This function changes from perspective view to orthographic view. The orthographic view is widely used in engineering. All objects appear at the same scale and parallel lines remain parallel. Also a unit length appears the same length anywhere on the screen. This makes it easier to assess the relative sizes.

Orthographic View

Fit view

Fit View Button

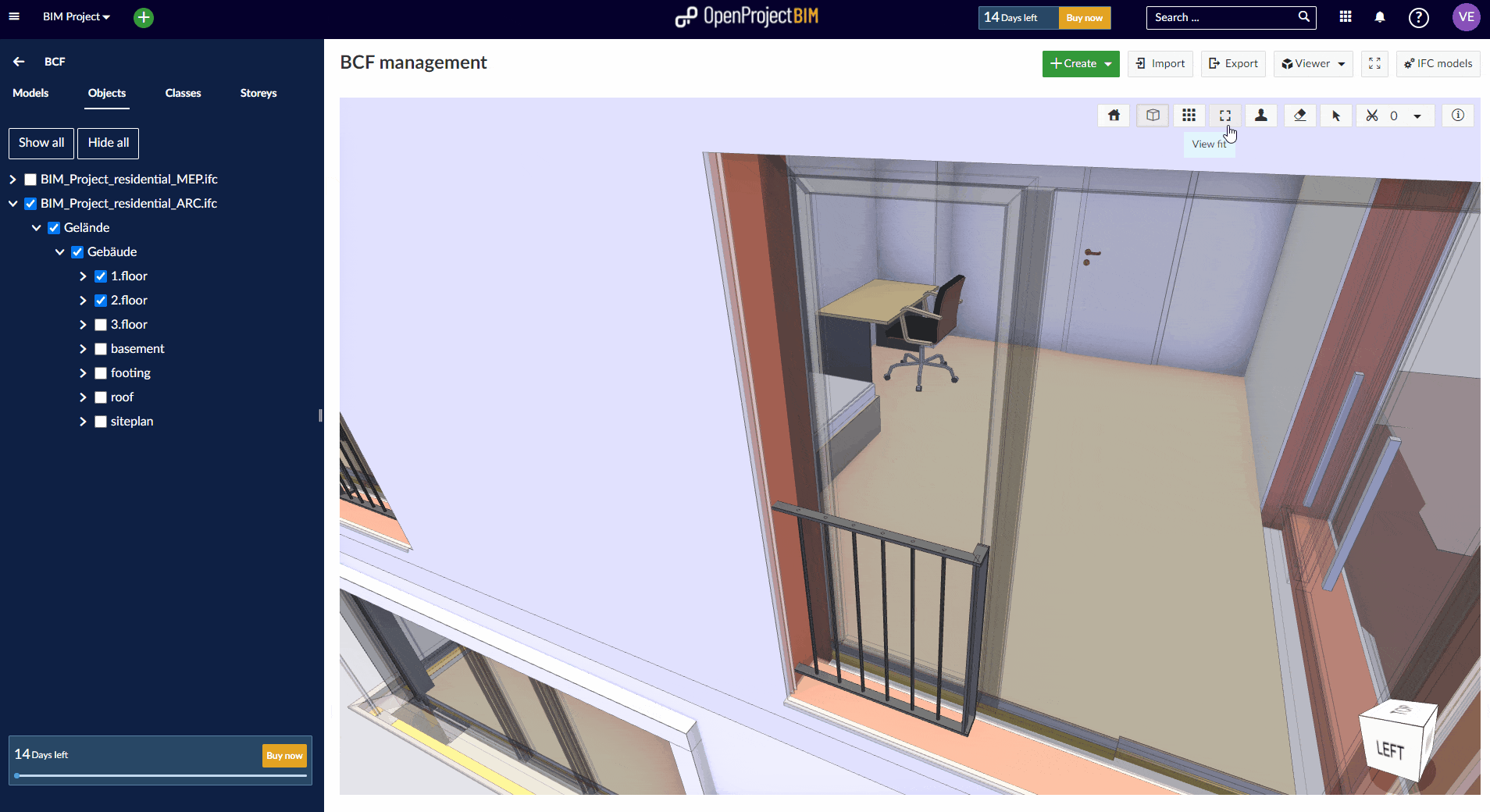

This function allows you to reset the current zoom level and the position of the building model. The button resets the zoom and position of the building model so that the entire model is visible and centered.

Fit View

First person perspective

First Person Button

The first person perspective changes the way you ineract with the building model. The user no longer rotates the entire building model around an axis. Now he has the option of changing their own perspective. After activating the first person perspective, the viewer behaves similar to the real world and the camera moves in a manner comparable to a head movement.

First_Person_Perspective

How to slice the building model?

Slice Building Model

To have a deeper look within the building model you are able to slice the whole building. To start slicing click on the “scissors symbol” within the IFC-Viewer toolbar and left-click on an element which has the same angle you want to slice (you can edit this angle later as well). Now there are shown some arrows. Grab one and slice the model by dragging the arrow to the location you want.

Slice building model

How to clear slices?

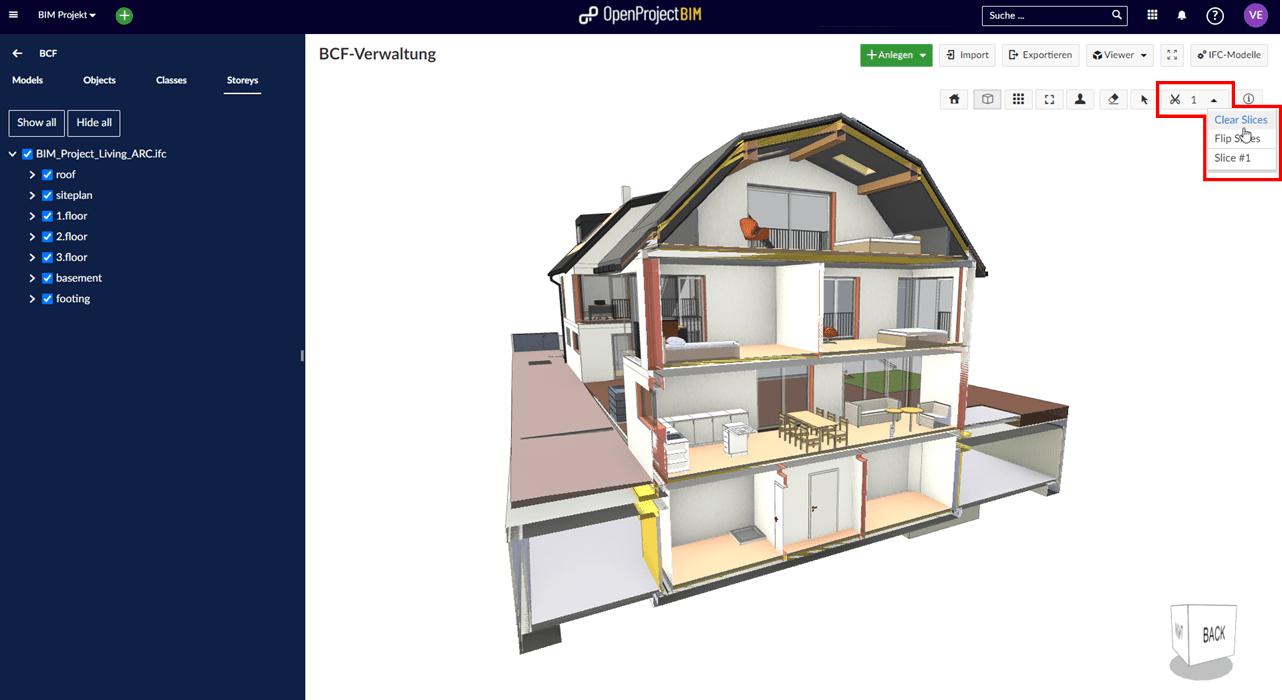

You are able to clear all slices by using the dropdown menu next to the “scissors symbol” within the IFC-Viewer-Toolbar.

slice-building-model

Clear slices

How to select elements?

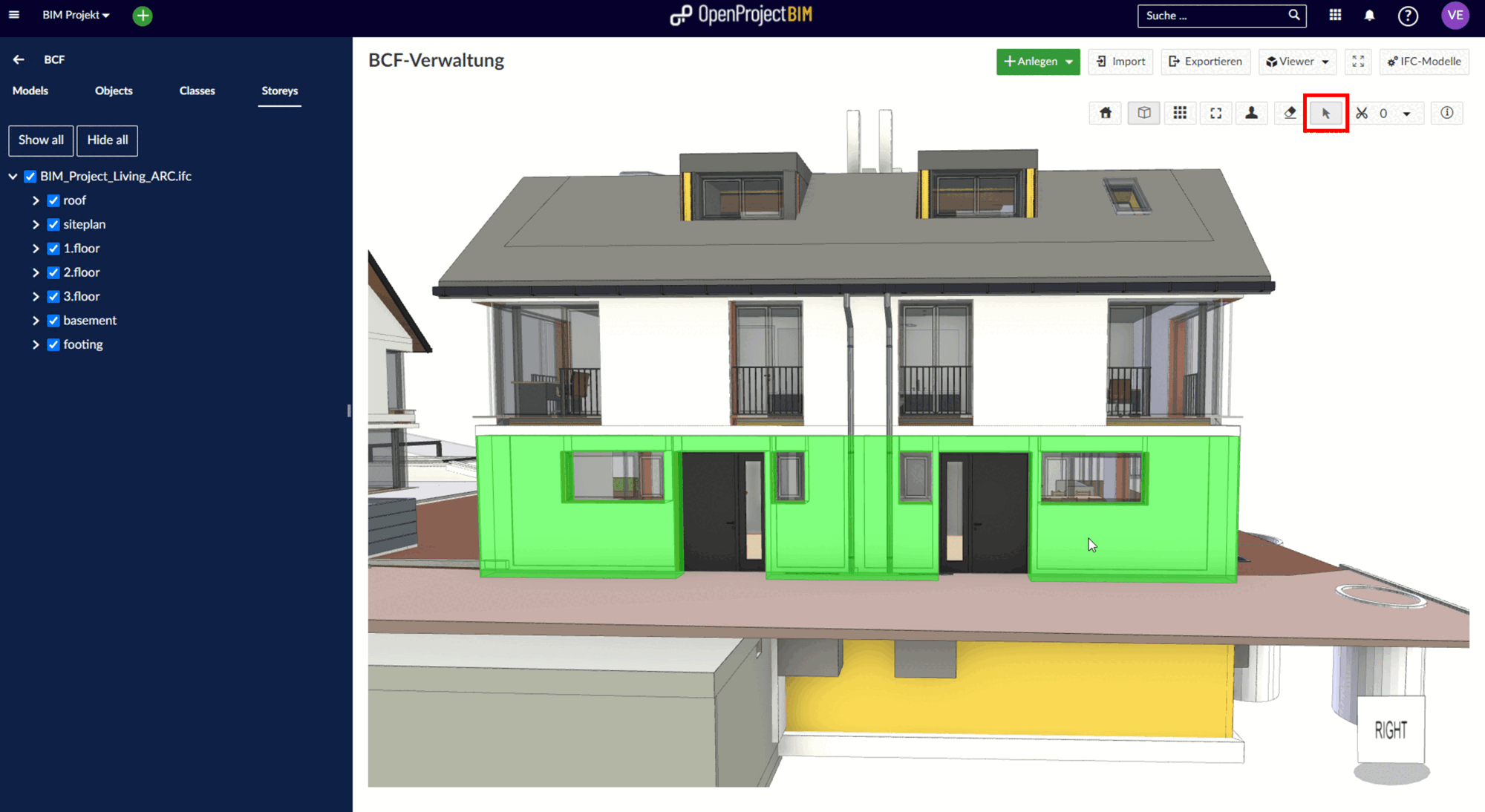

To select elements within the building model, you have to activate the selection mode by clicking on the highlighted toggle button placed in the IFC-Viewer toolbar. After activating the selection mode you are able to select a single or multiple elements within the viewer by left click. Your individual selection won’t be reset after leaving the selection mode. You are able to reset your current selection with the context menu (right click).

Select Elements Button

Select Elements

Show properties

You are able to see the basic properties of each element (e.g. the UUID) within OpenProject BIM. After using the “information” buttion a new tab named “Properties” will appear.

Show Properties Button

Show Properties

In order to inspect the information for individual objects, you have to use the context menu and simply select the “Inspect Properties” Menu item. All properties of the object will appear in the new tab.

Inspect Properties

But be careful! The properties of the element you just clicked on are displayed. So make sure that there are no unwanted objects (e.g. window panes) in front of your desired object.

Element Properties

Show or hide elements via viewer

There are two options to hide elements via viewer. The first possibility is to use the IFC-viewer toolbar. Within the toolbar you will find the “hide-button”

Hide Elements Button

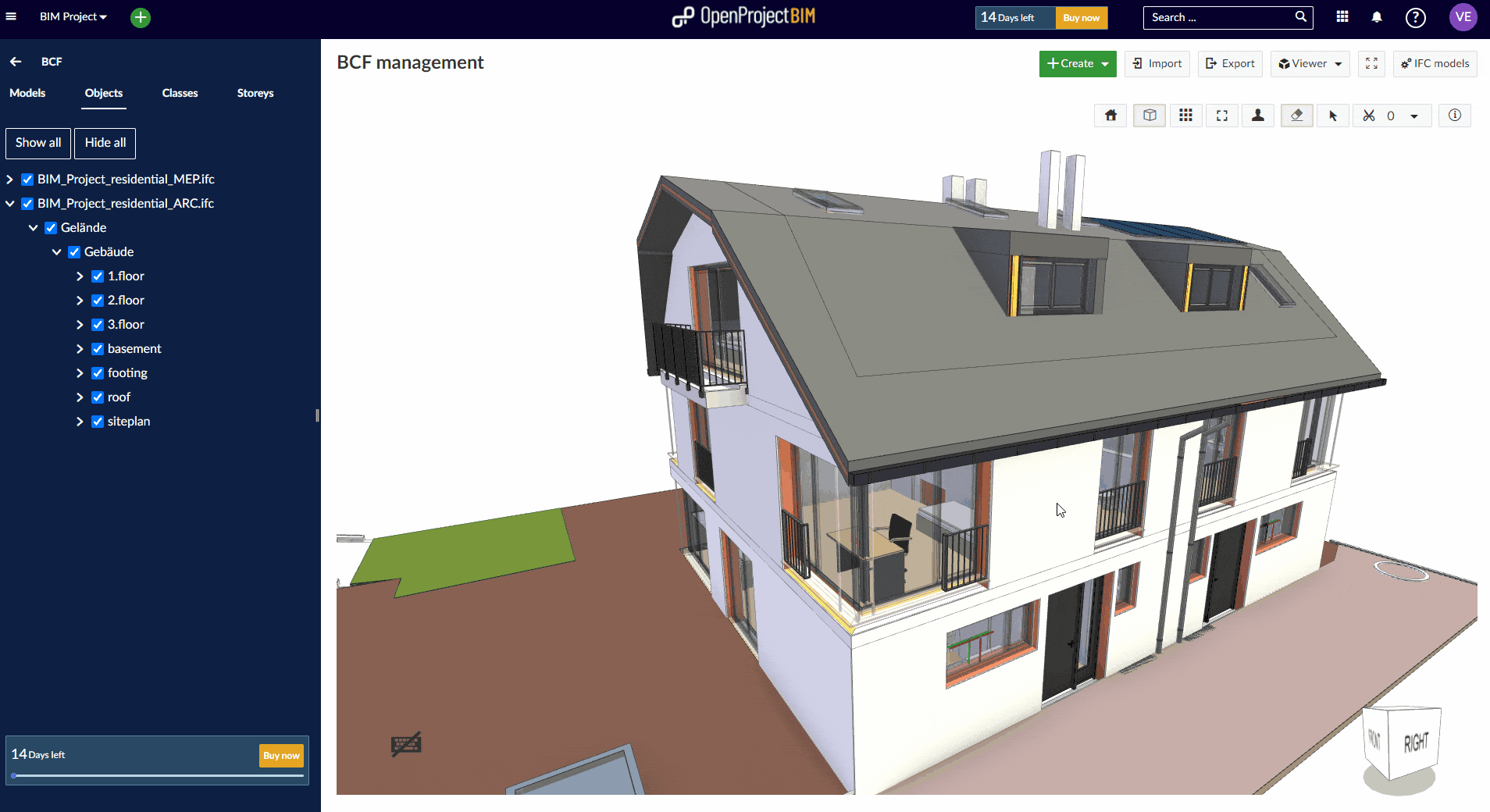

After the “Hide-Mode” has been activated, each element you click (left click) on will be hidden.

Hide_elements_Viewer_rubber

The second possibility to hide single elements via viewer is to use the context menu. Here you can find the function to hide single elements.

Hide Elements Context Menu

You are always able to show hidden elements by using the “Reset-View” Button in the Viewer toolbar or use the “Show All” Button in the IFC Model tree.

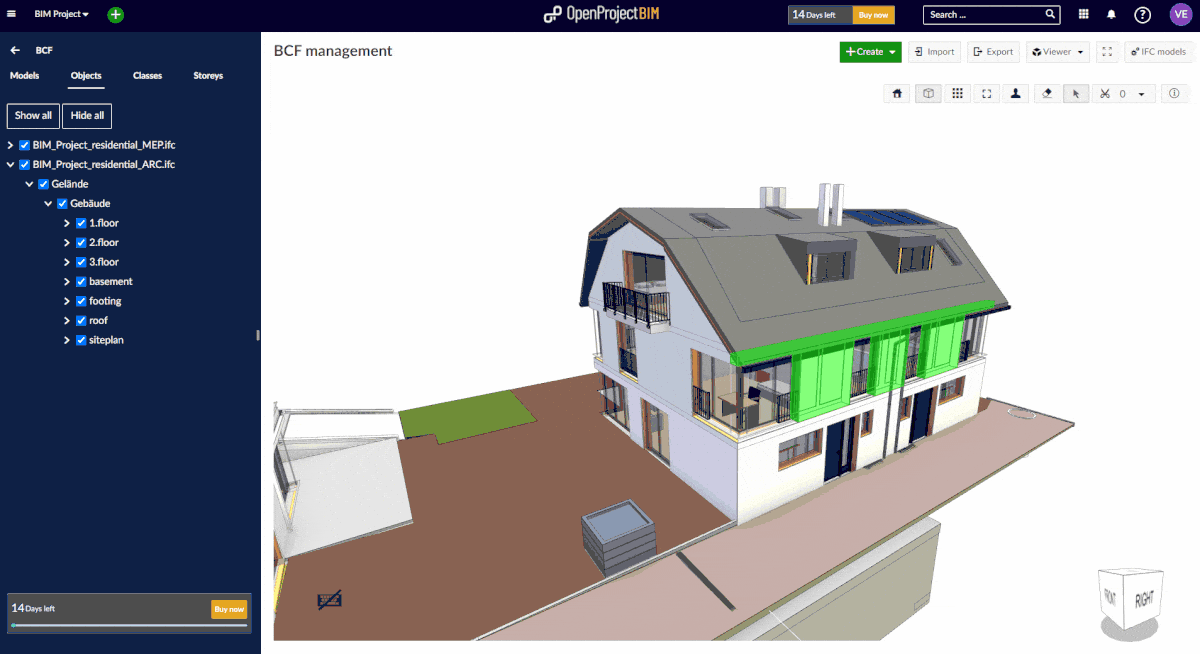

Sometimes it is helpful to see elements in context to other elements but a good view can be disturbed by individual elements. For this case our viewer is able to show your building model in an “X-Ray”-Mode. The mode can be activated via the context menu and enables disturbing elements to be displayed in the context of other elements without covering them.

XRay

Show elements in model tree

To be sure if you hide or select the element you want you are able to jump to this element in the IFC Model tree.

All you have to do is open the context menu on the desired element and select the “Show in Explorer” function. Now the Model tree folds out to the desired element.

Show in Explorer

Show or hide models or elements via model tree

If you have uploaded several IFC models of one building (e.g. one for each discipline - Architecture, Structural & MEP) and want to have a look at a single model or just want to hide specific elements, you are able to hide them by changing the status of the checkbox within the model tree.

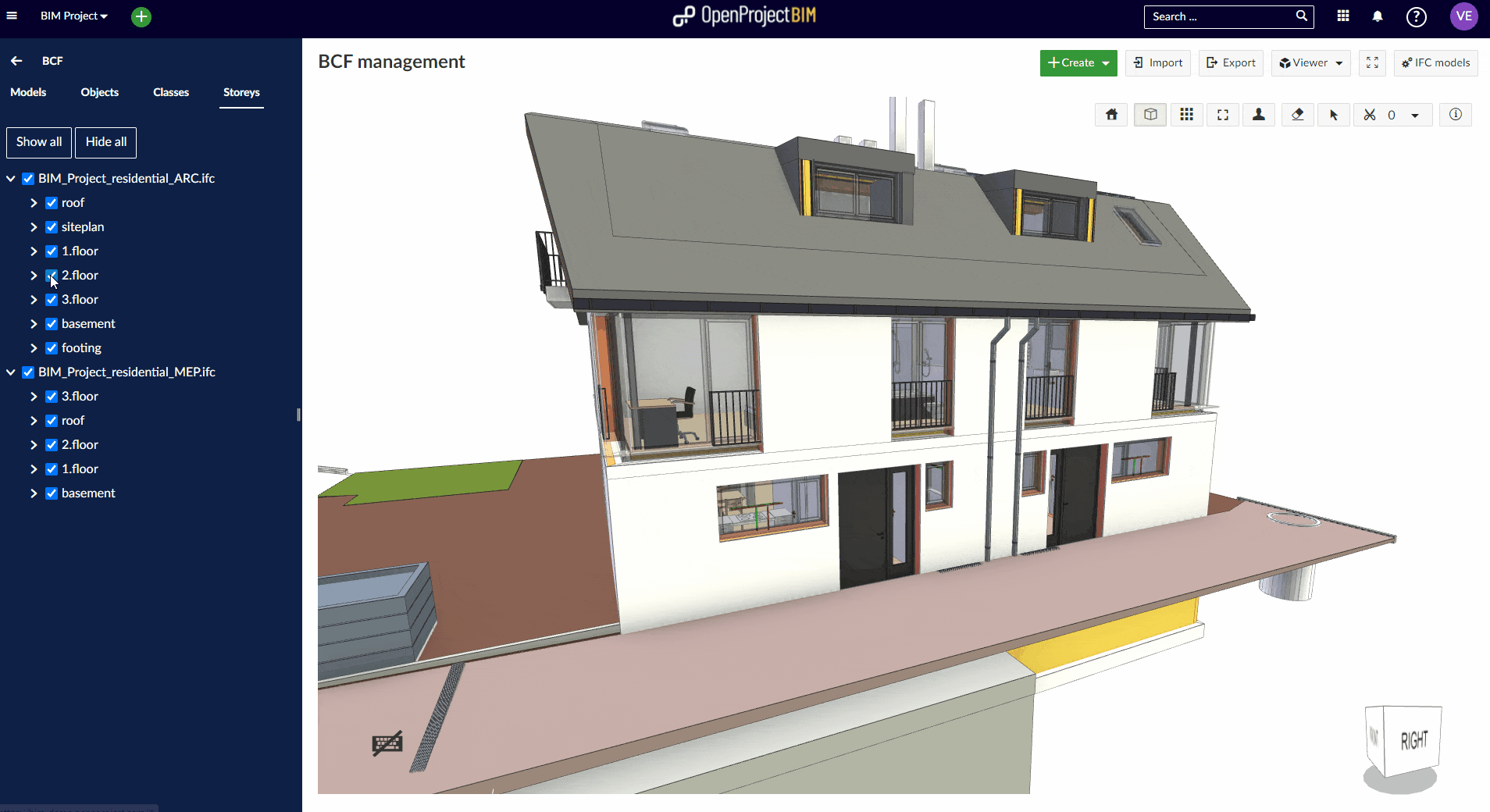

The model tree can represent the structure of the building model in different ways. This means that entire models, storeys or even similar components can be hidden with a single click.

Hide_Model

Hide_building_storey

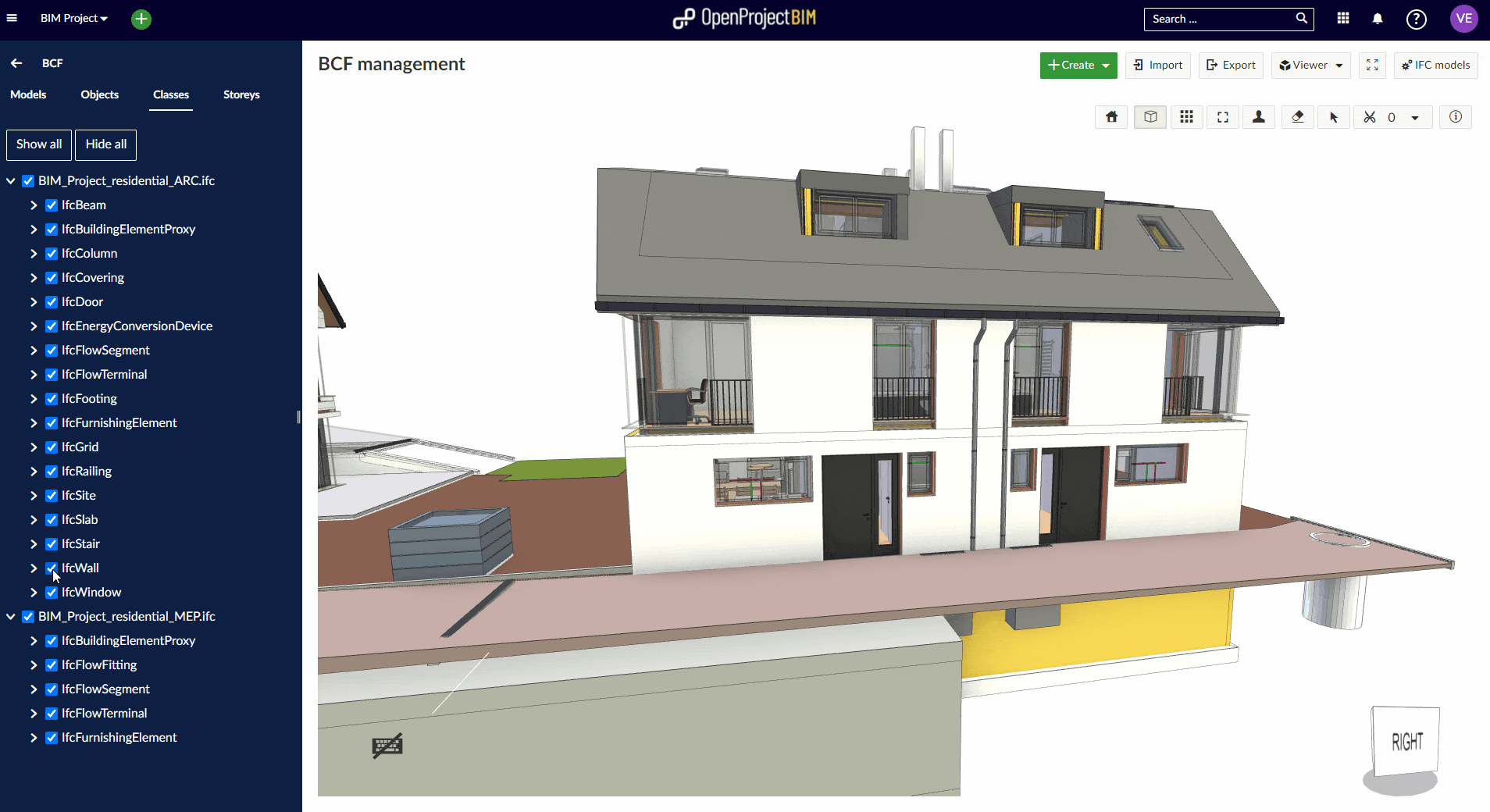

After switching to the “Classes” tab in the model tree, you can see the grouping of all elements by IFC classification. Whole groups can be hidden as well. In the example, all elements of the type “IFCWall” will be hidden.

Hide_IFC_classes
