Export work packages

You can export a single work package in PDF/Atom format or multiple work packages in PDF/XLS/CSV formats.

Export multiple work packages

How to trigger an export

To export work packages to another format, visit the Work packages module and select a default or saved work package view (table or card view) you want to export. Click on the settings icon in the top right corner. Trigger the Export dialog from the dropdown menu.

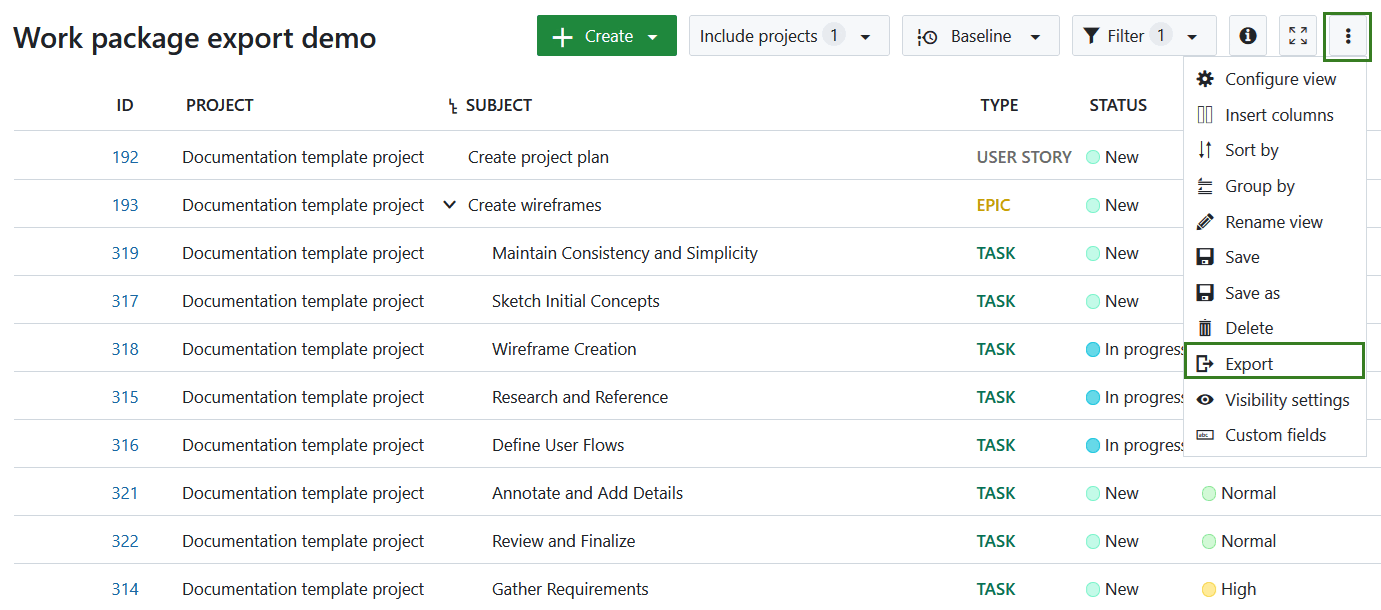

Exporting from the table

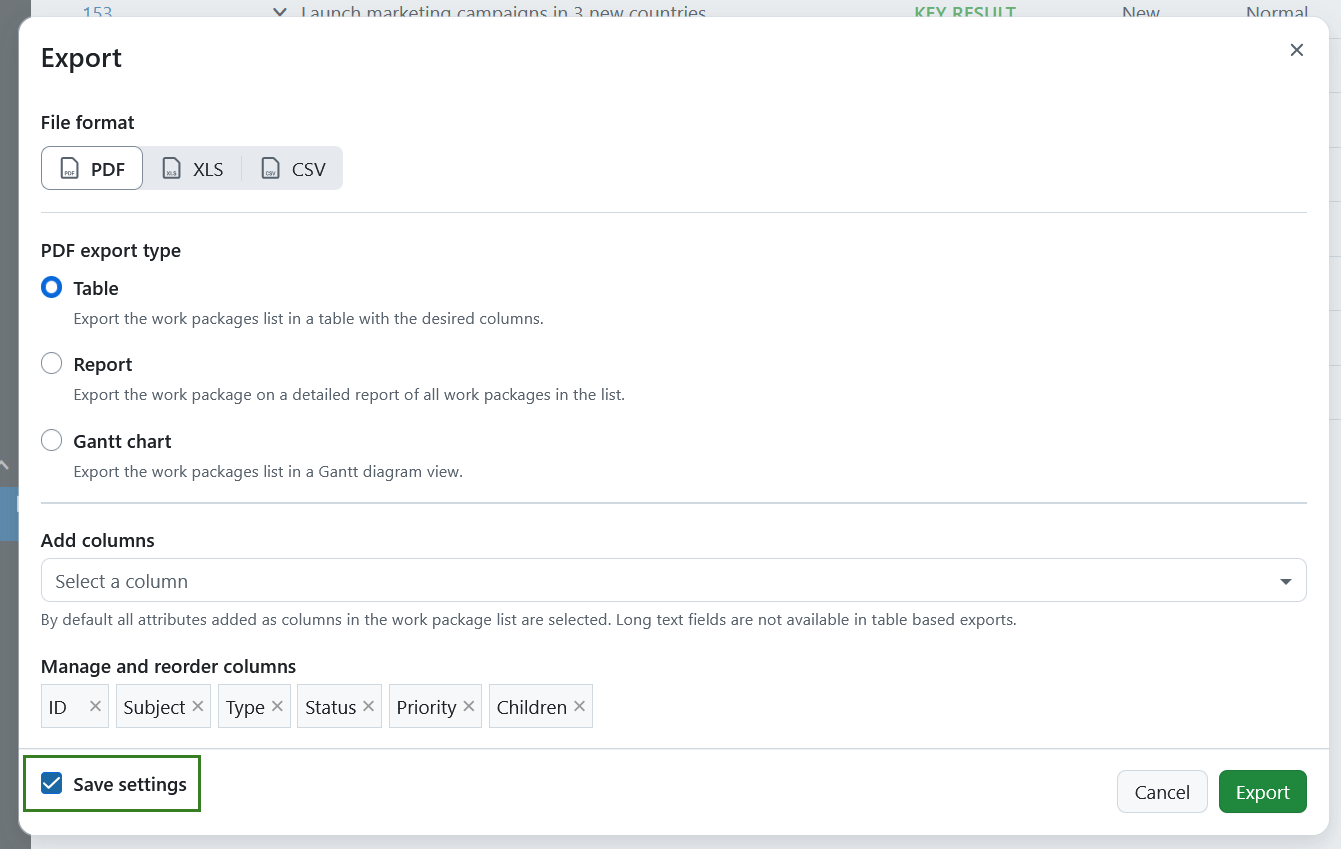

This will open a dialog where you can select the desired format. Click on one of the possible formats to start the export. Below, we will detail how to adjust which data should be exported as well as what the various formats contain.

Export options

All work packages included in the work package table in the currently selected view will be exported, unless a certain export limit has been defined by the instance administrator. The limit can be changed in the work package settings in the system administration. Newly created instances have a maximum of 500 work packages set as a limit by default.

Note

PDF export options include all of the work packages in the selected work package table, regardless of the limit. The possible export limit is relevant for XLS, CSV and Atom export options.

Columns

You can choose which columns will be displayed in the table (excluding long text fields) and change their order. The pre-selected columns are the ones in the work package table query. Learn how to save the work package view.

Some formats such as PDF will limit the number of columns available due to limitations of the PDF rendering engine to avoid overflowing the available space.

Export format options

OpenProject has multiple file format options for exporting work packages, including PDF, XLS and CSV. See below what each format entails.

PDF export

OpenProject has multiple options for exporting work packages in PDF format. These include table, report and Gantt chart.

PDF Table

PDF Table exports the work package table displaying work packages as single rows with the selected columns for the work package table. Work package IDs are linked to the respective work packages. Clicking on a work package ID will lead you directly to the work package in OpenProject.

OpenProject PDF Table export

Tip

If “display sums” is activated in the work package table, then the sum table is included at the bottom of the exported work package table.

PDF Report

With PDF Reports, you can export detailed up-to-date work plans for your project in a clean and practical format. It includes a title page, a table of contents (listing all of the work packages), followed by the description of single work packages in a block form. The table of contents is clickable and is linked to the respective pages within the report, making navigation much easier.

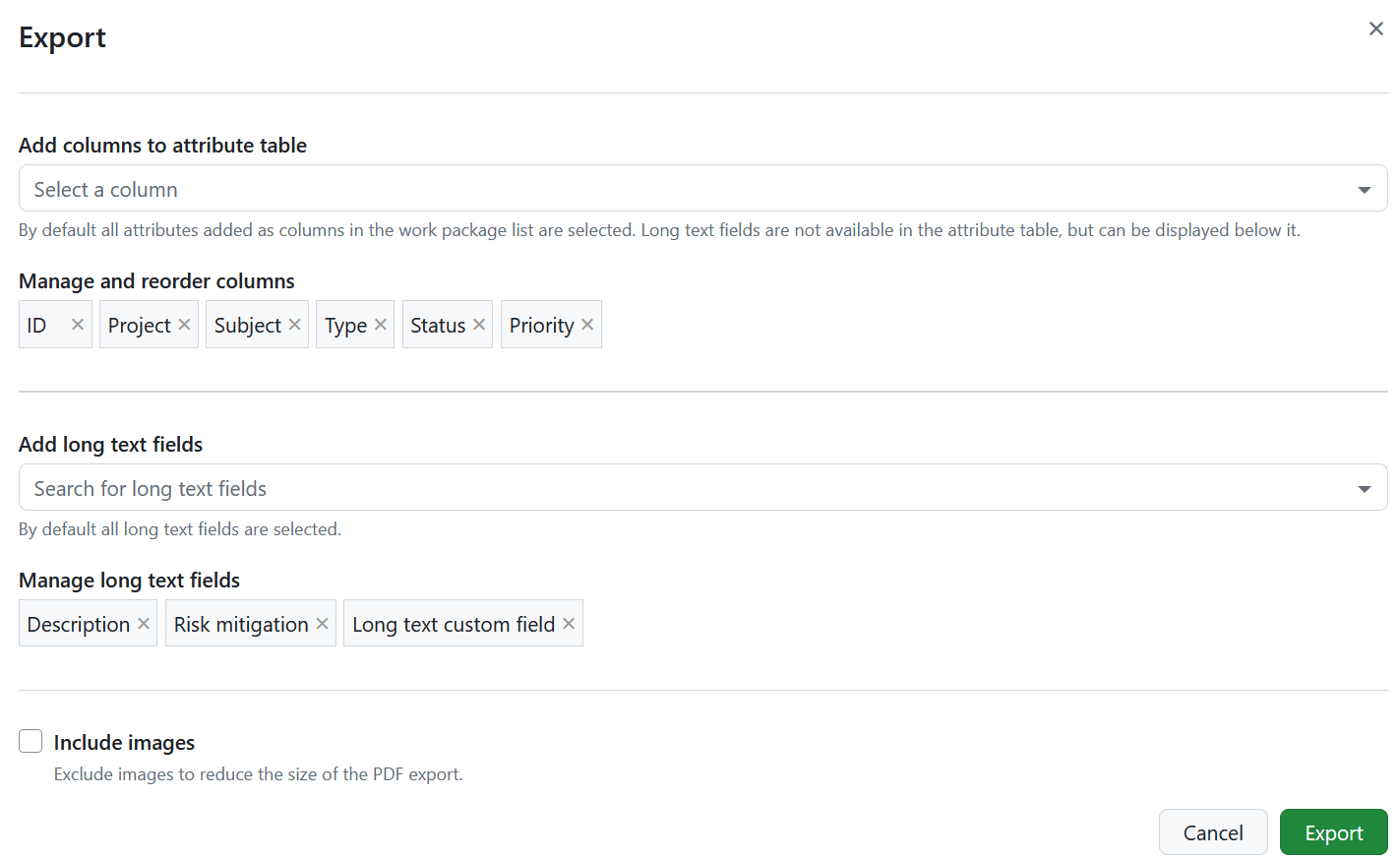

Define a PDF report for OpenProject work packages export

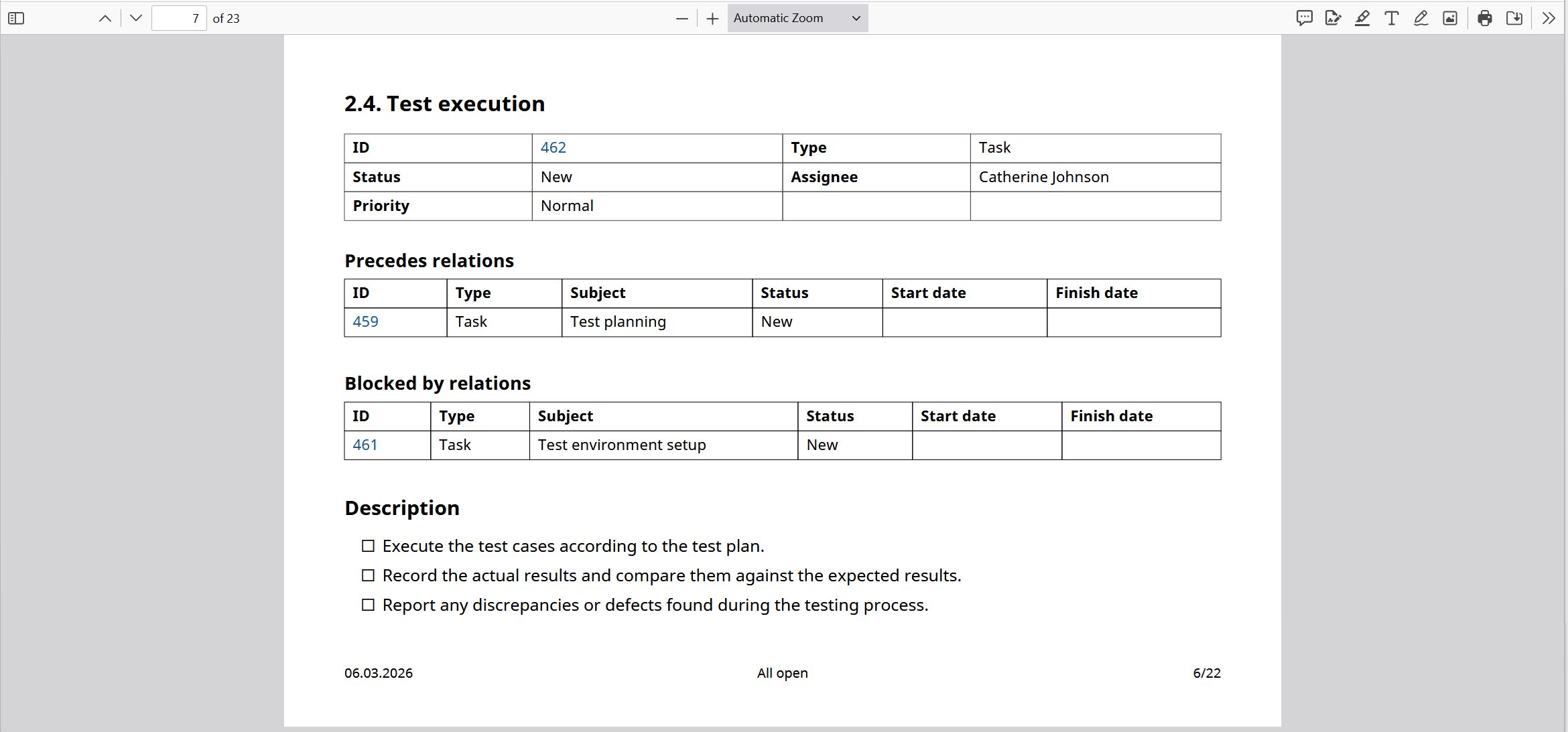

For each work package, a table of attributes is included, where attributes correspond to the columns you specified for the export. For a single work package export, attributes are displayed according to the work package form configuration.

The table of attributes is followed by the work package description and, if necessary, custom long text fields, which support embedded work package and project attributes.

Tip

If you used page breaks in work package descriptions, contents will be split into separate pages accordingly.

Note

Embedding of rich text, e.g. descriptions of other work packages, is currently not supported.

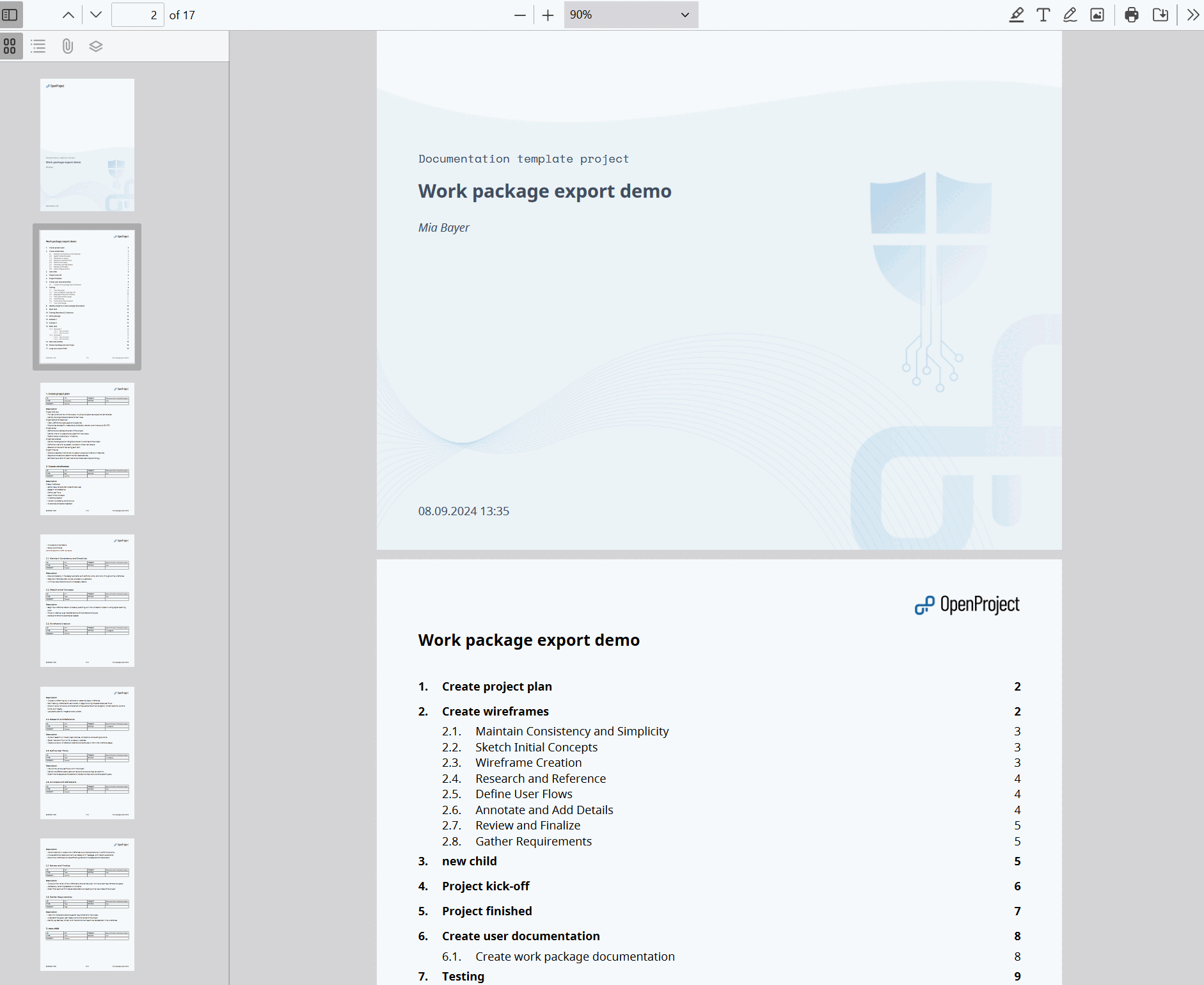

OpenProject_pdf_report_export

Tip

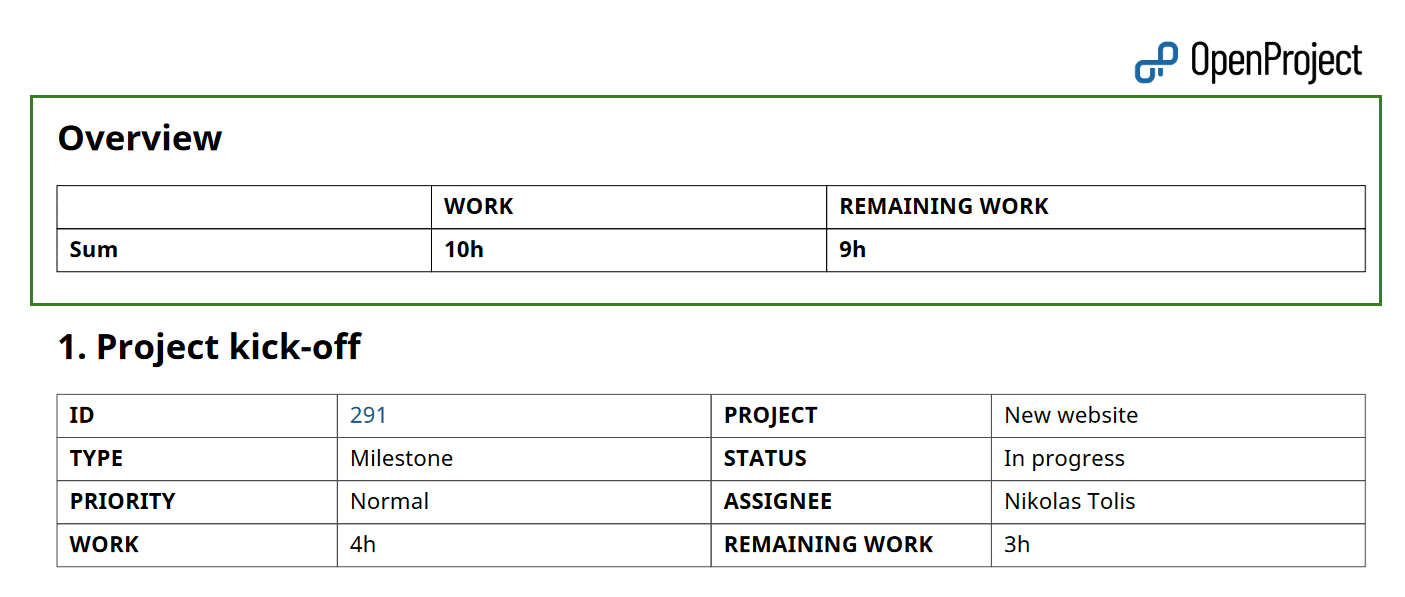

If “display sums” is activated in the work package table, then the sum table is included between the table of contents and work packages description in an Overview section.

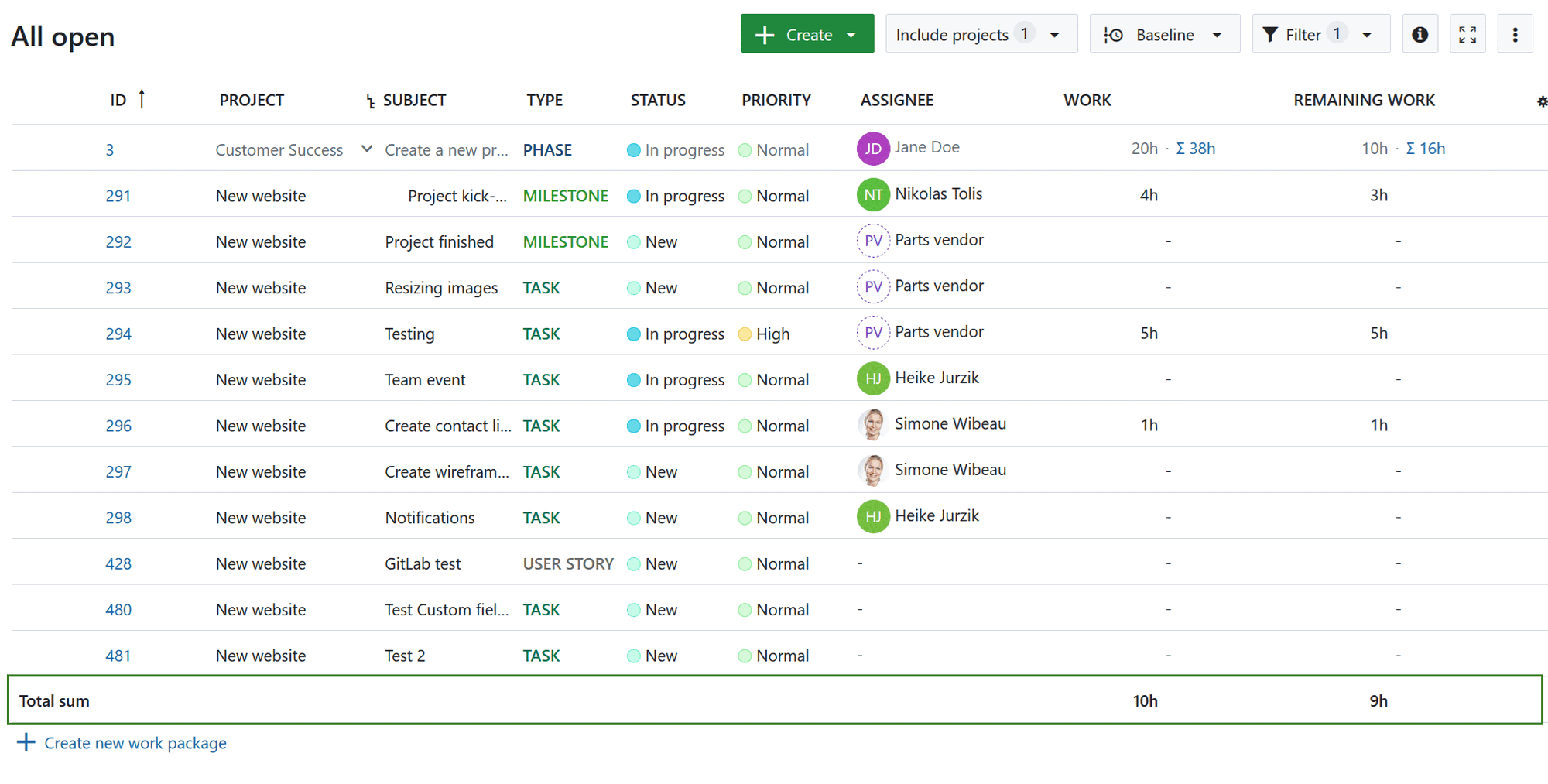

OpenProject_work_package_table_sum

OpenProject_pdf_report_sum

PDF Report with images

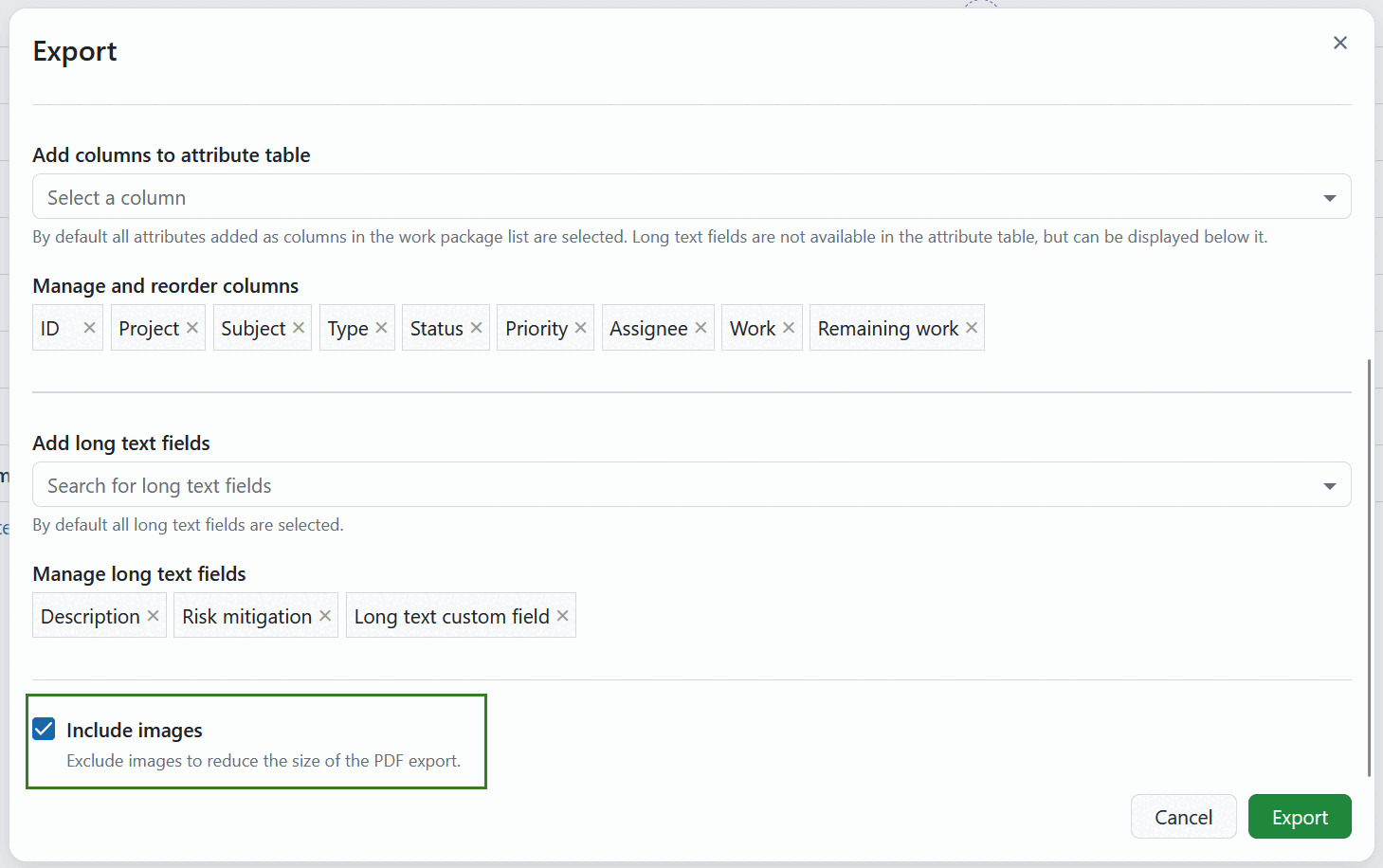

If you select the Include images option, your PDF Report will include the images from the work package description.

Include images in OpenProject work packages export

Note

Images attached or linked in the work package Files section or in the Activity comments are not included in the PDF Report with images.

OpenProject_work_package_export

Gantt chart PDF

Note

Gantt chart PDF export is an Enterprise add-on and can only be used with Enterprise cloud or Enterprise on-premises. An upgrade from the free Community edition is easy and helps support OpenProject.

You can export Gantt charts directly from the work packages module by selecting the respective option, or from the Gantt charts module by doing the same.

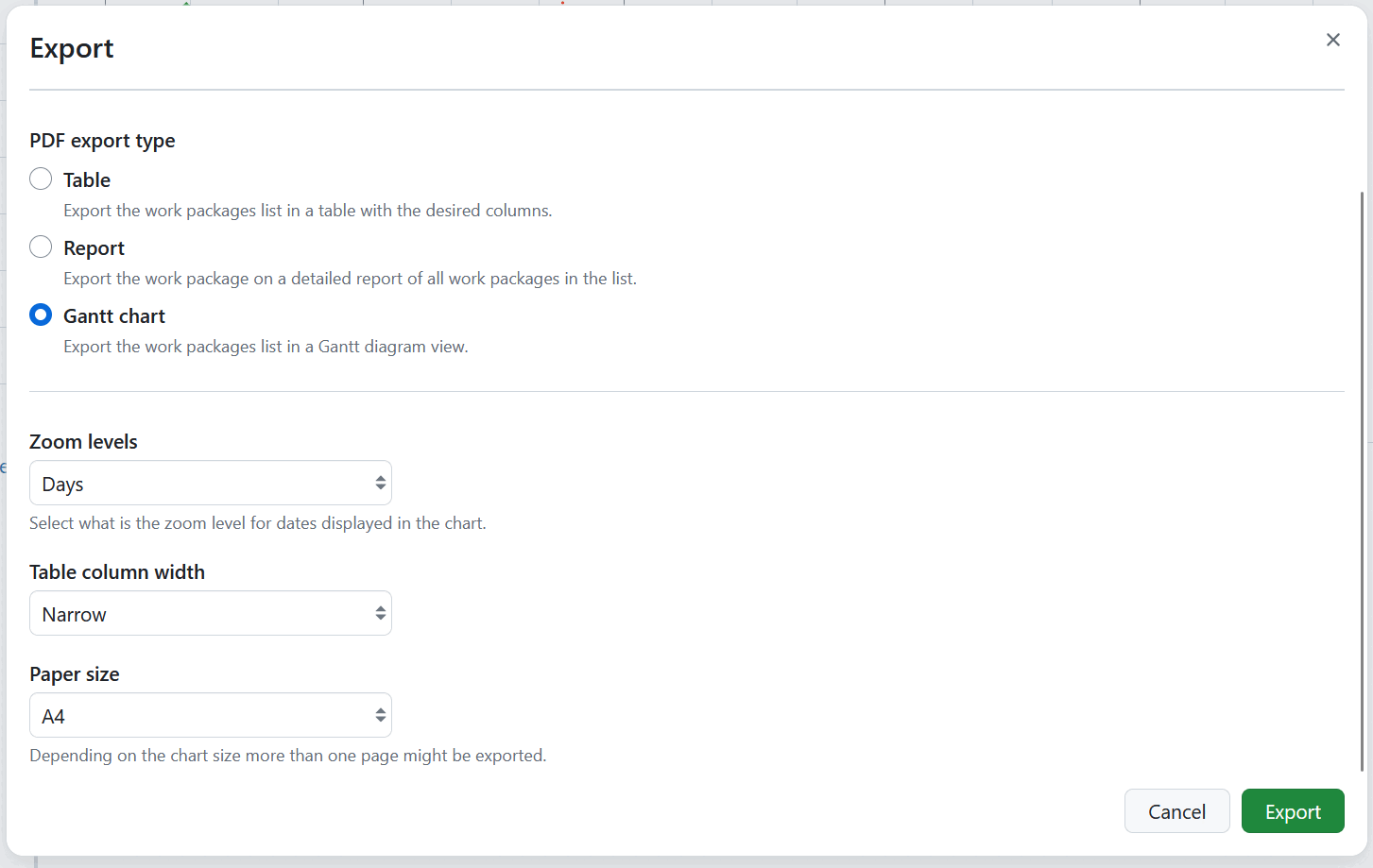

Gantt chart PDF export in OpenProject

For more information on using the Gantt chart module and Gantt exports, please refer to the Gantt chart PDF Export guide.

XLS export (Excel)

XLS is a plain sheet that matches the OpenProject work packages table with its columns and work packages as rows matching the selected filter(s).

Tip

To open XLS exported files in Microsoft Excel, ensure you set the encoding to UTF-8. Excel will not auto-detect the encoding or ask you to specify it, but simply open with the wrong encoding under Microsoft Windows.

OpenProject can export the table for Microsoft Excel with the following options:

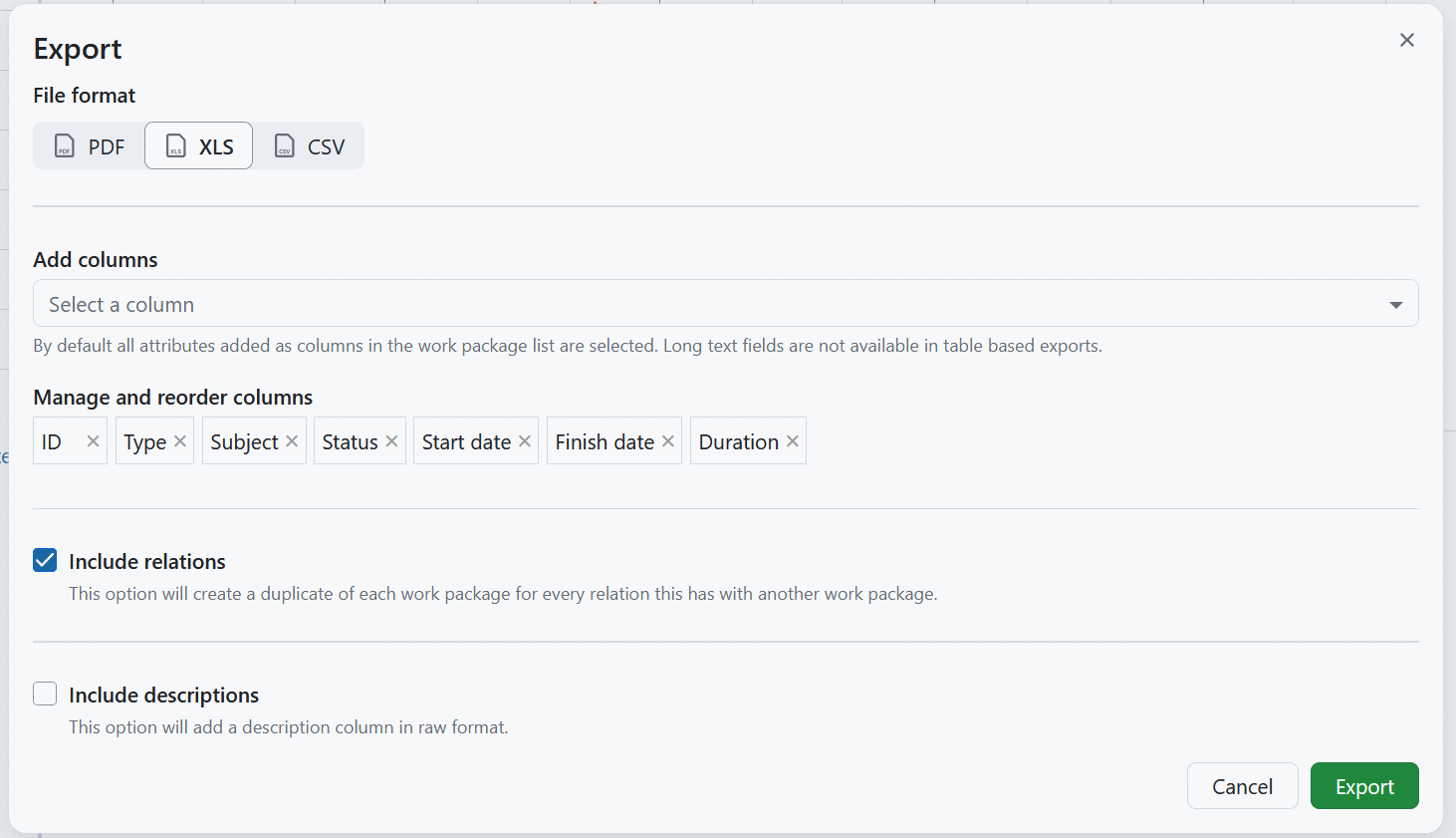

Work package export in Excel form in OpenProject

In XLS format export, you can manage and reorder columns that should be included, as well as decide if relations and descriptions should be included in the report.

OpenProject_work_package_export_excel

XLS with descriptions

If you activate the Include descriptions option, an additional column will be included in the report, showing work package descriptions.

OpenProject_work_package_export_excel_description

XLS with relations

If you activate the Include relations option, additional columns to list each work package relation in a separate row will be included in the report. It will include the relation target and its ID and relation type.

OpenProject_work_package_export_excel_relations

Limitations

The OpenProject XLS export currently does not respect all options in the work package view being exported from:

  • The order of work packages in a manually sorted query is not respected. This is a known limitation (Ticket).
  • The hierarchy of work packages as displayed in the work package view. The exported XLS is always in “flat” mode.
  • The description is exported in ‘raw’ format, so it may contain HTML tags.

CSV export

OpenProject can export the table into a comma-separated CSV. This file will be UTF-8 encoded.

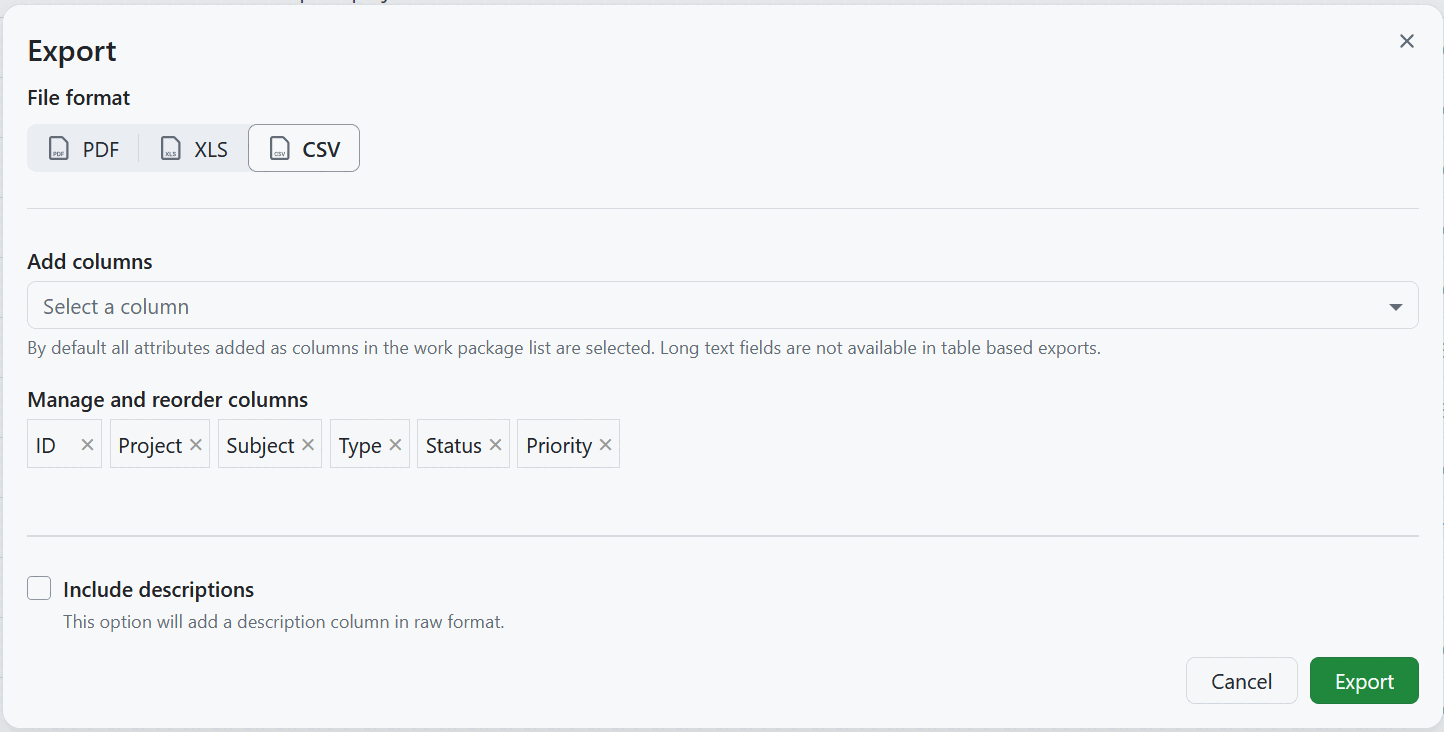

Export work packages in CSV format in OpenProject

Tip

To open CSV exported files in Microsoft Excel, ensure you set the encoding to UTF-8. Excel will not auto-detect the encoding or ask you to specify it, but simply open with the wrong encoding under Microsoft Windows.

OpenProject work package CSV export

If you select the Include descriptions option, the work package description field will be included in the export.

OpenProject work package CSV export with descriptions

Limitations

The OpenProject CSV export currently does not respect all options in the work package view being exported from:

  • The order of work packages in a manually sorted query is not respected. This is a known limitation (Ticket).
  • The hierarchy of work packages as displayed in the work package view. The exported CSV is always in “flat” mode.
  • The description is exported in ‘raw’ format, so it may contain HTML tags.

Export single work package

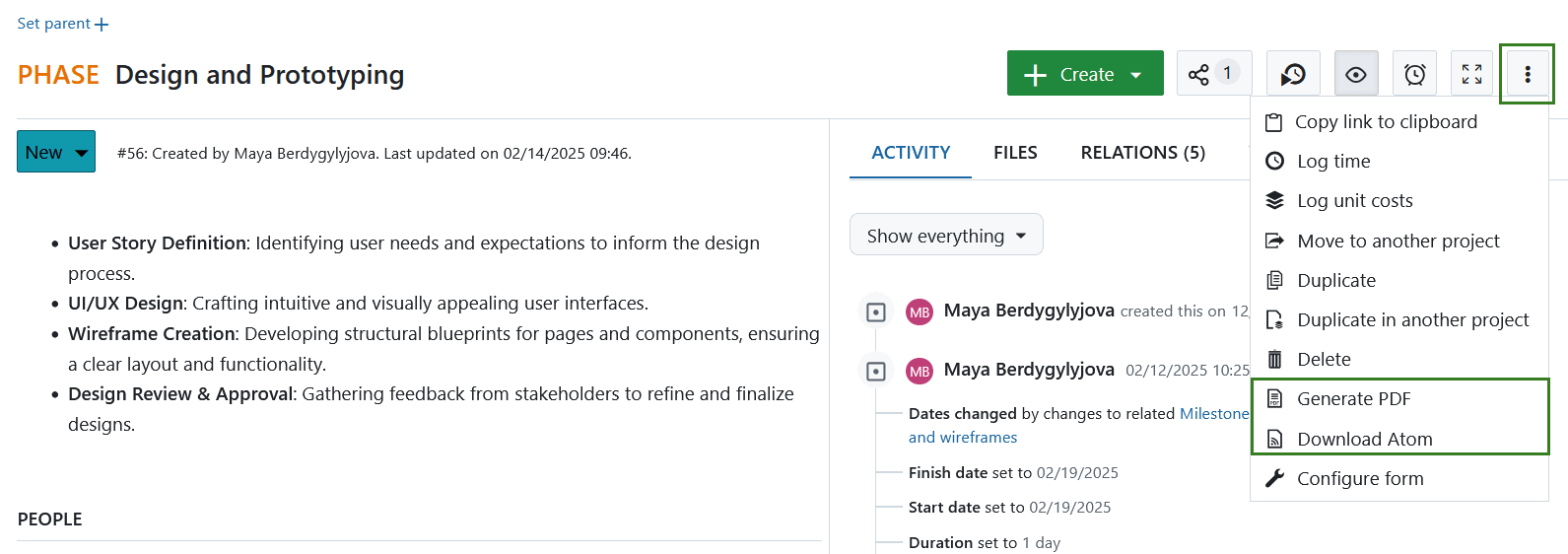

It is also possible to export single work packages in PDF and Atom format. To do that, click on the settings icon in the top right corner and select the preferred format from the dropdown menu.

OpenProject_single_work_package_export_options

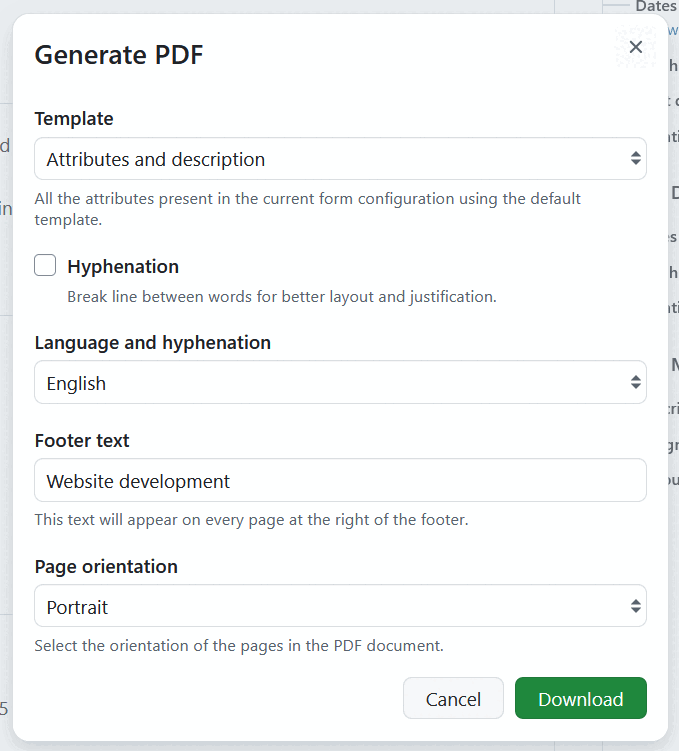

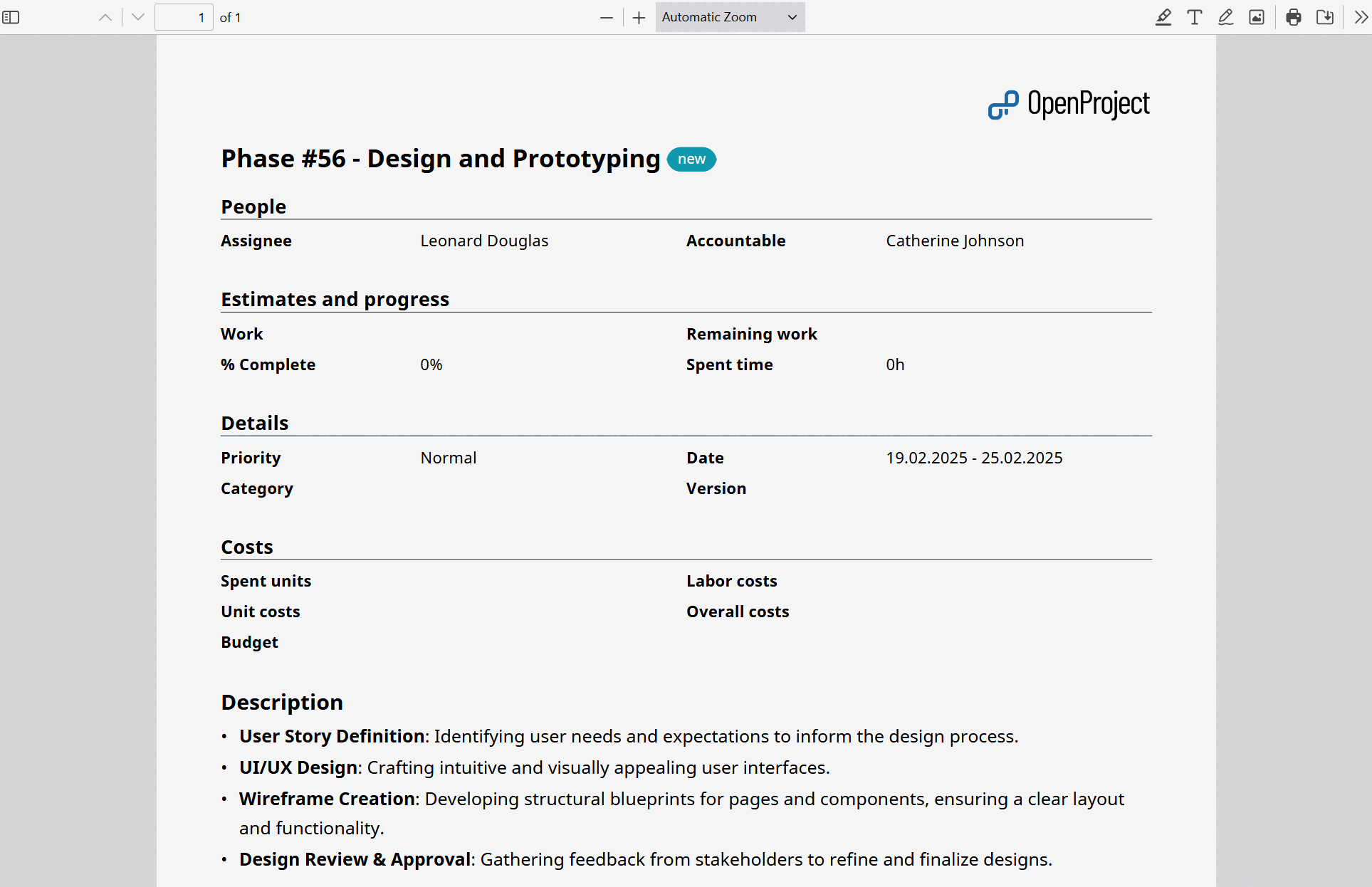

An exported PDF file will include all the work package fields that are configured in the work package form, regardless of whether they are filled out or not.

Atom Export includes a work package Title, Author, a link to the work package and work package activities.
