Set custom color theme and logo (Enterprise add-on)

As an OpenProject Enterprise add-on you can replace the default OpenProject logo with your own logo. In addition, you can define your own color theme which allows you to implement your corporate identity in OpenProject.

Navigate to Administration -> Design in order to customize your OpenProject theme and logo.

The design page provides several options to customize your OpenProject Enterprise edition, grouped under three tabs, Interface, Branding, PDF export styles. You can choose a color theme under any of these tabs.

Under Interface you can also choose custom colors for elements of the interface such as the primary button color, accent color, the background of the top navigation header and the main menu.

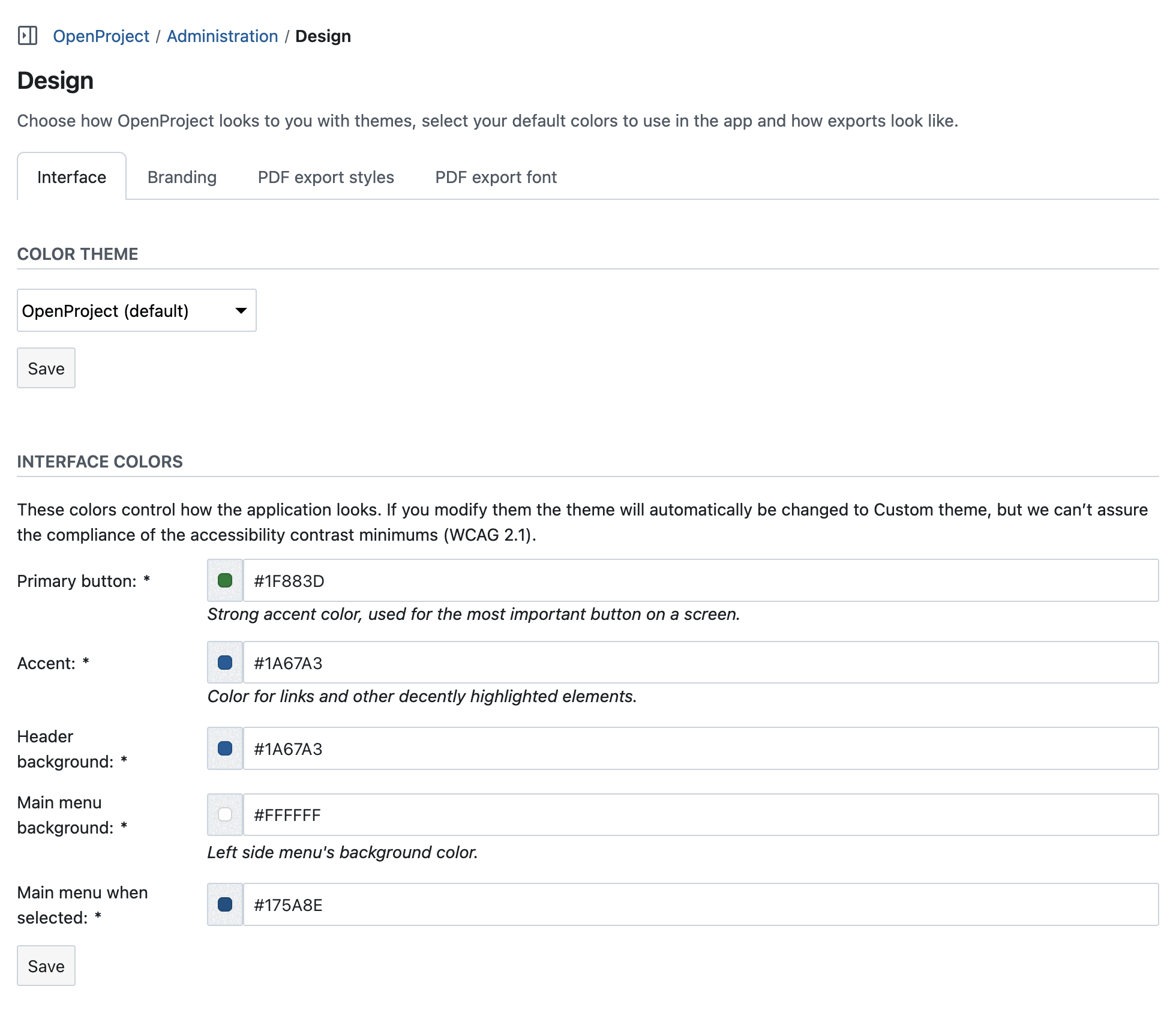

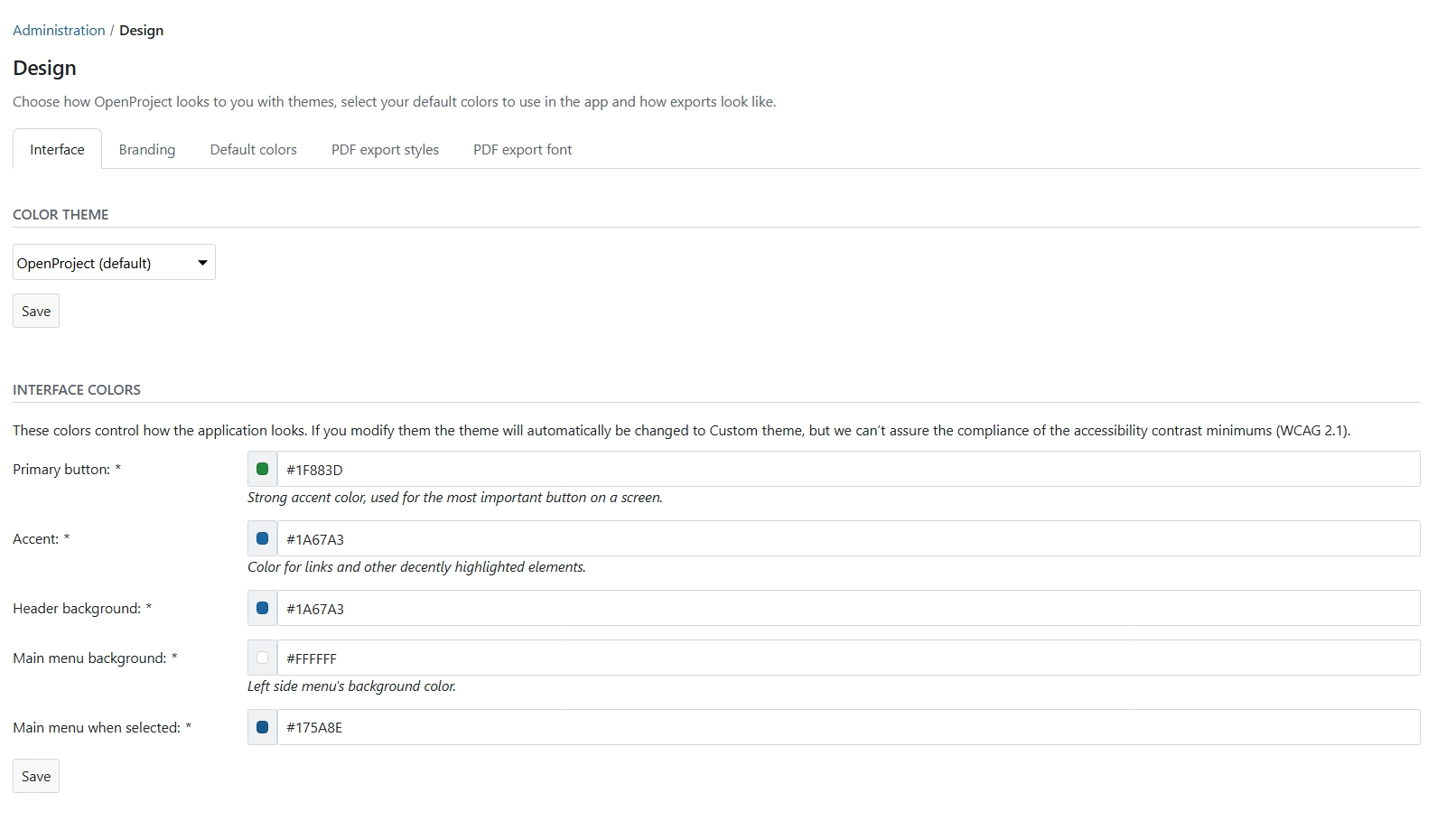

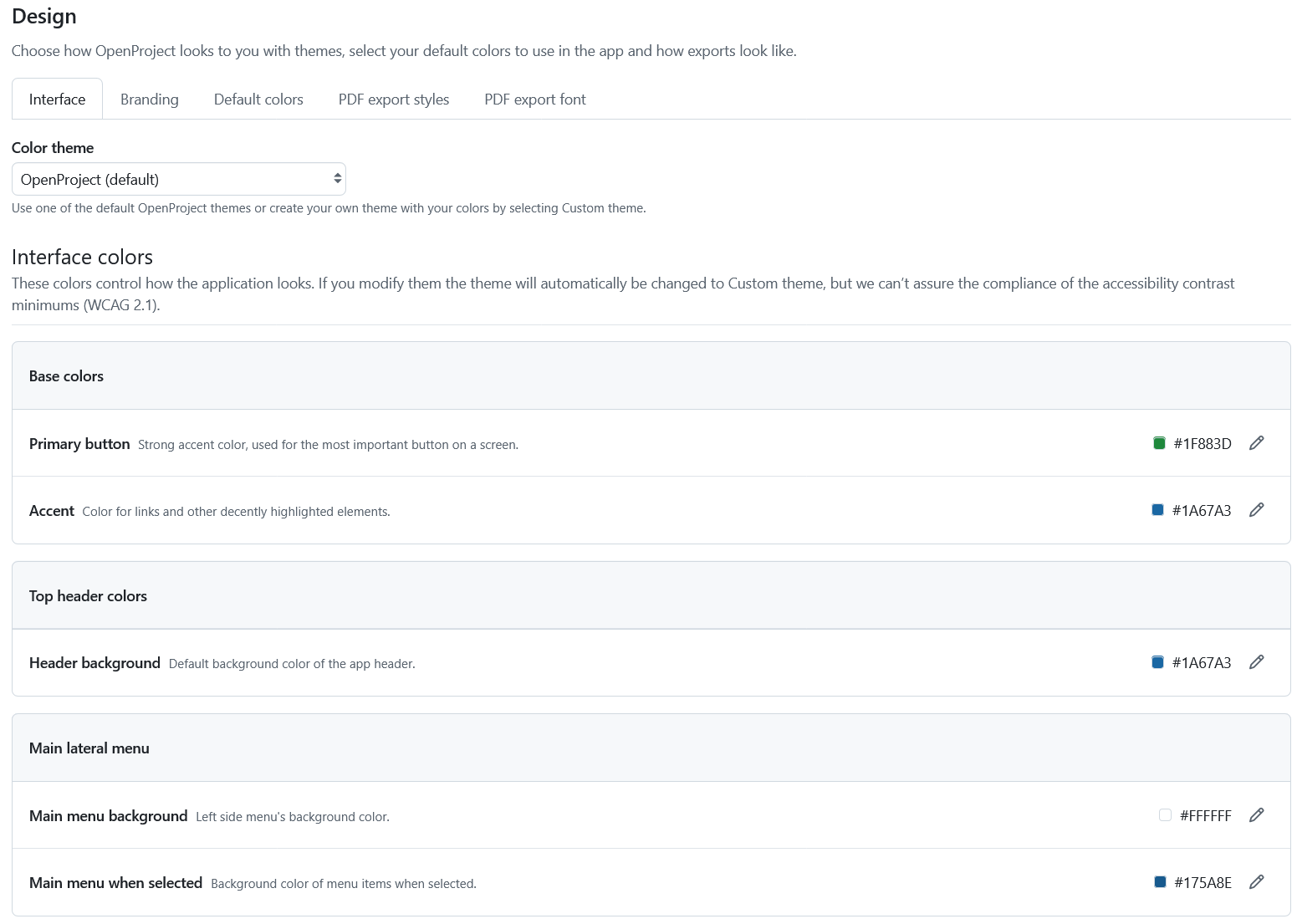

Design interface settings in OpenProject administration

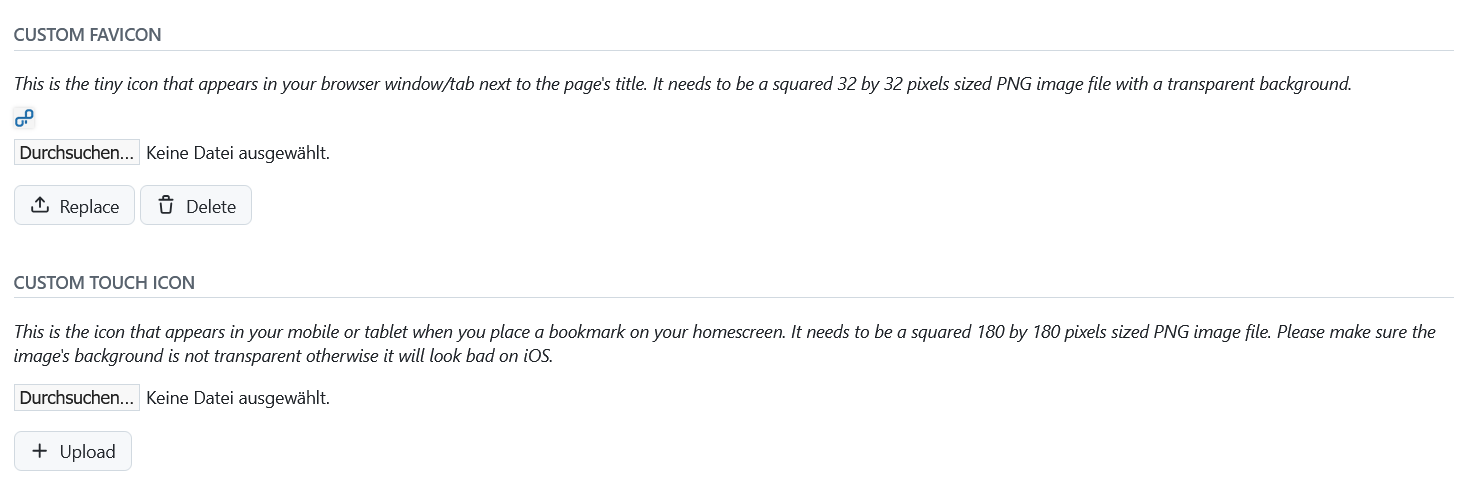

Under the Branding tab you can also upload a custom logo to replace the default OpenProject logo, set a custom favicon, which is shown as an icon in your browser window/tab, and upload a custom touch icon, which is shown on your smartphone or tablet when you bookmark OpenProject on your home screen.

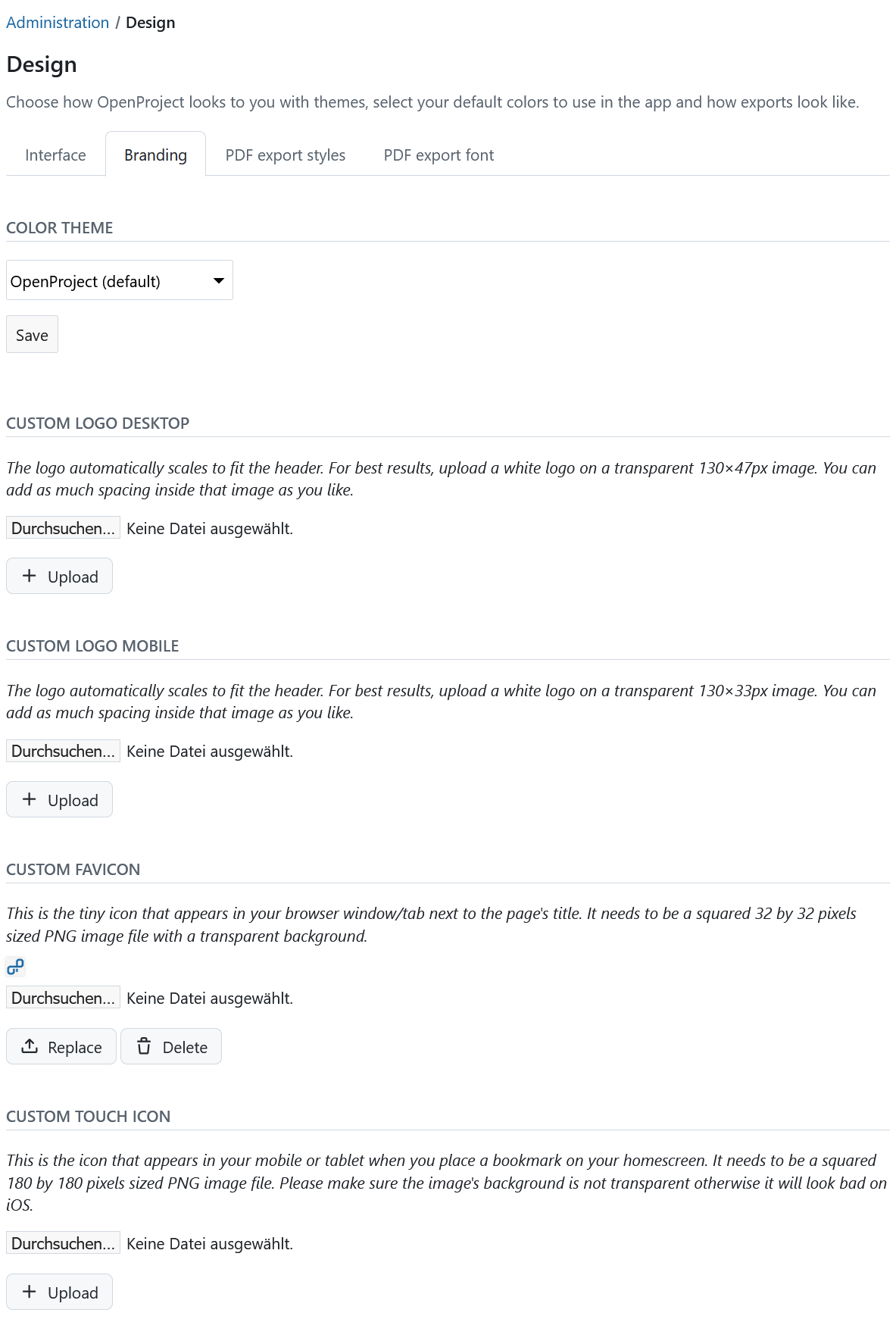

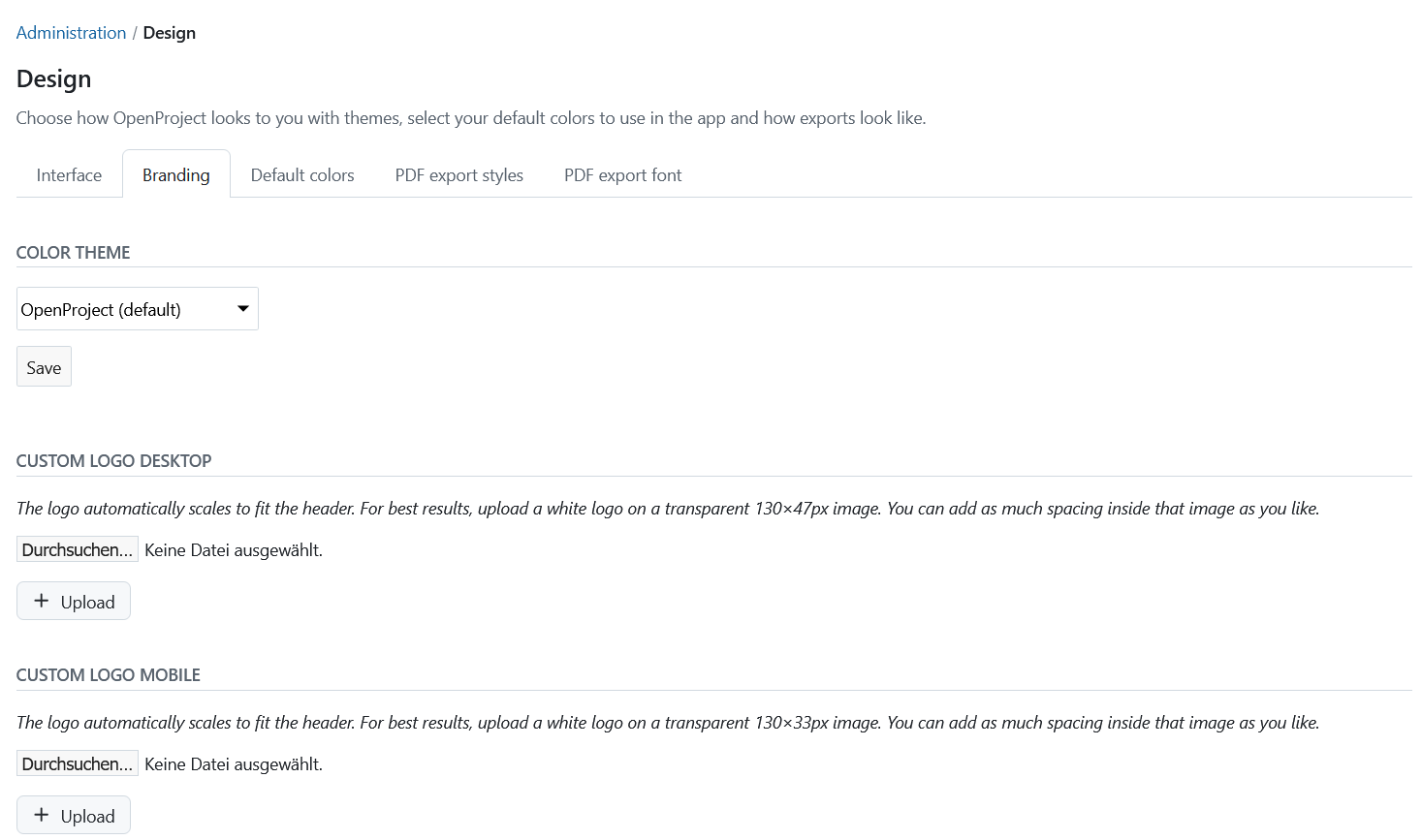

Branding settings in OpenProject administration

Under PDF export settings you can set the preferences for exporting work packages in a PDF format.

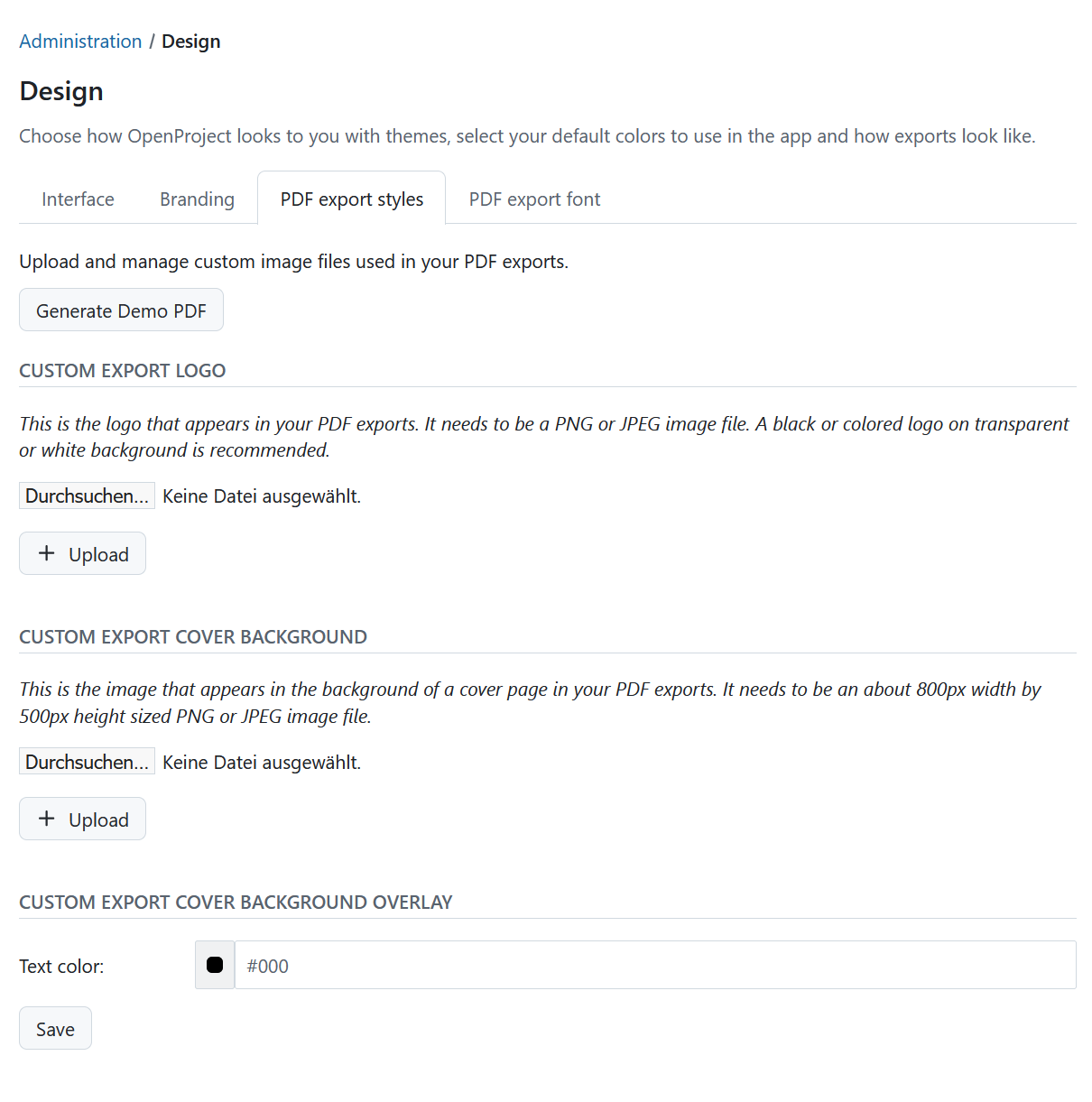

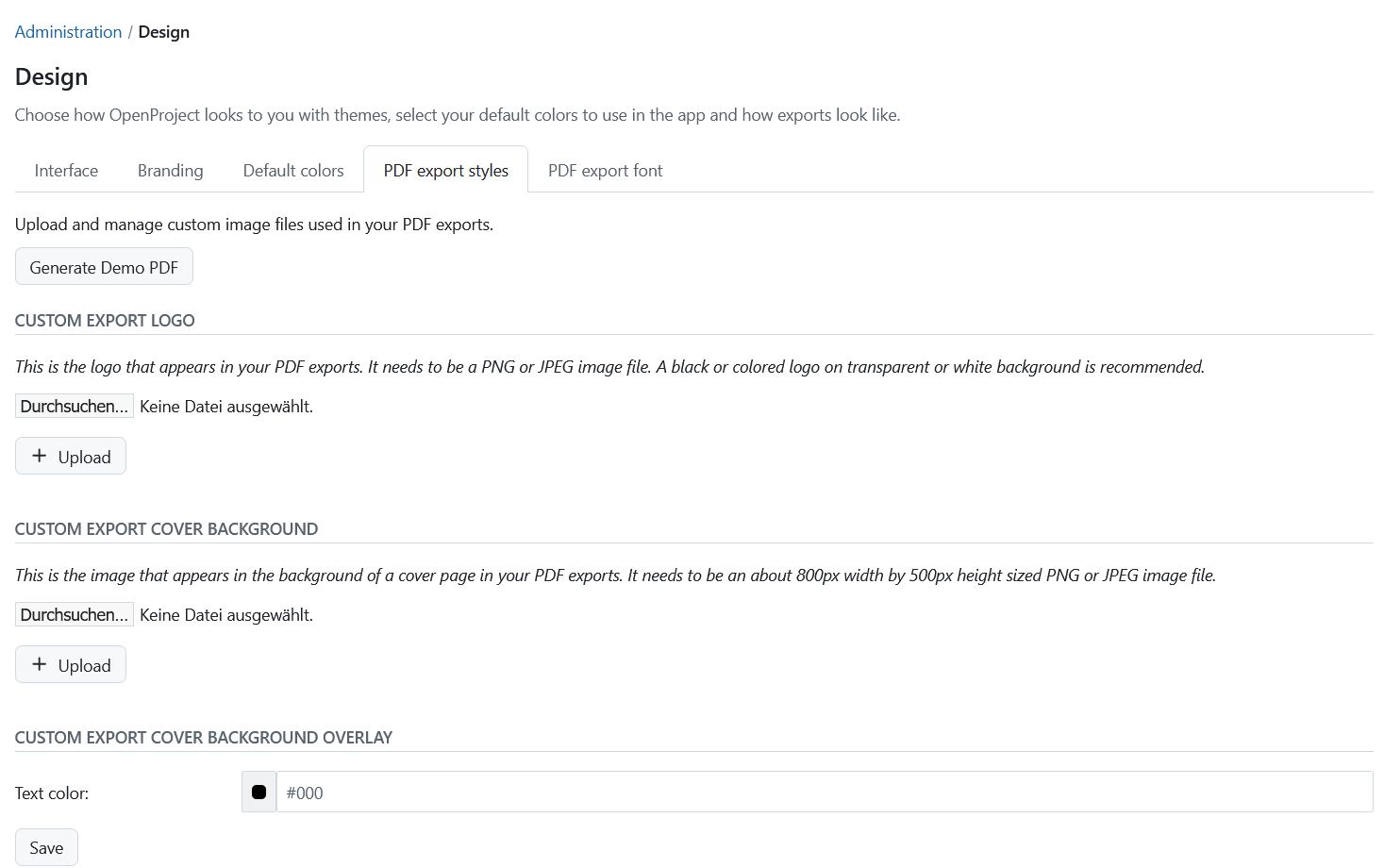

PDF export styles settings in OpenProject administration

Choose a color theme

You can choose between the three default color themes for OpenProject:

  • OpenProject
  • OpenProject Gray (previously called OpenProject Light)
  • OpenProject Navy Blue (previously called OpenProject Dark)

Press the Save button to apply your changes. The theme will then be changed.

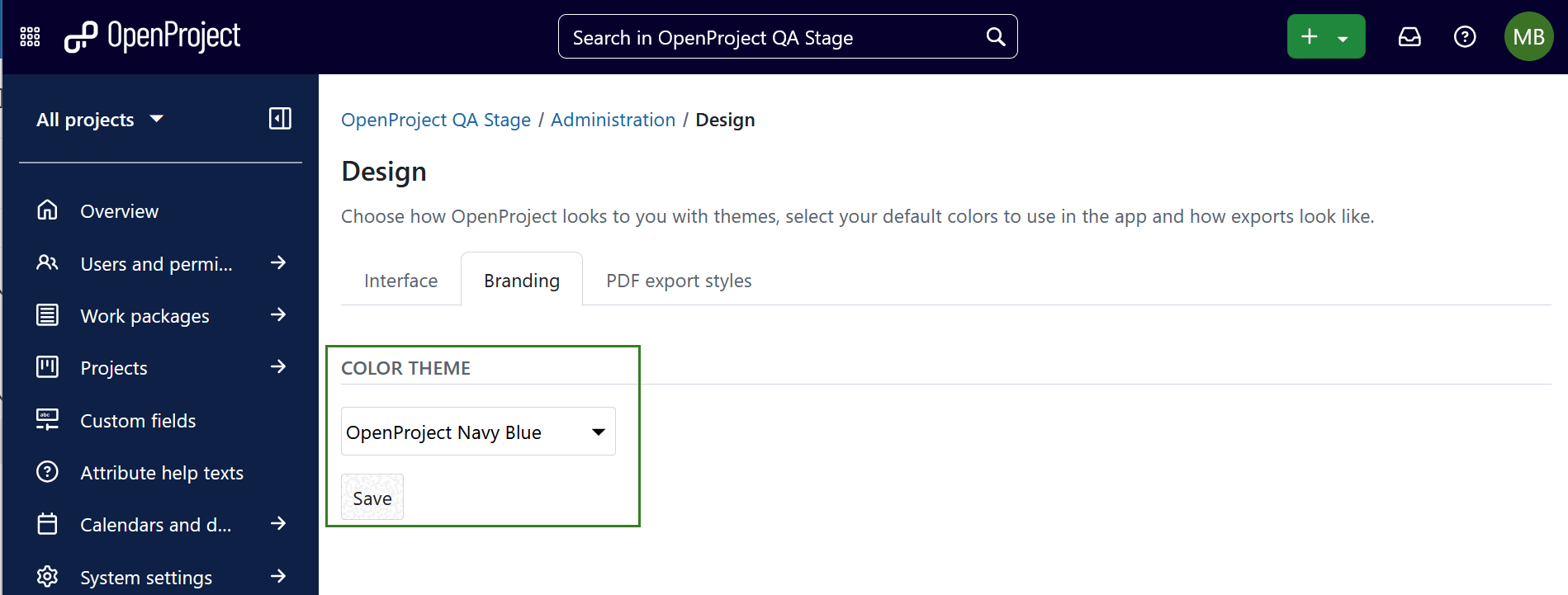

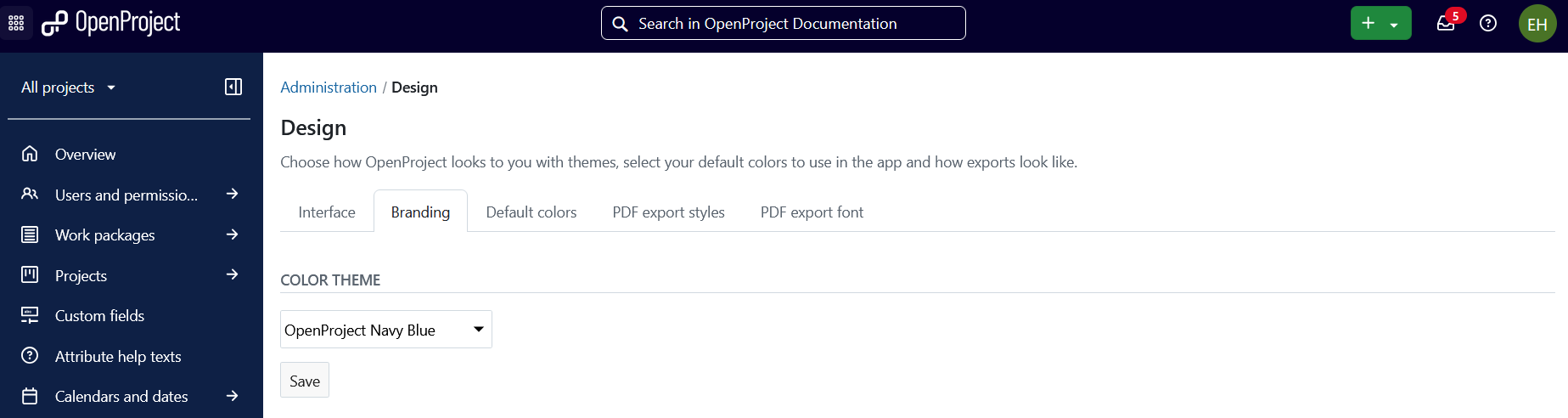

Change color theme in OpenProject administration settings

To replace the default OpenProject logo with your own logo, make sure that your logo has the dimensions 460 by 60 pixels. Select the Browse button and select the file from your hard drive to upload it.

Click the Upload button to confirm and upload your logo.

Upload custom logo in OpenProject administration settings

Custom logo updated in OpenProject administration

Set a custom favicon

To set a custom favicon to be shown in your browser’s tab, make sure you have a PNG file with the dimensions 32 by 32 pixels. Select the Choose File button and select the file from your hard drive to upload it.

Then click the Upload button to confirm and upload your favicon.

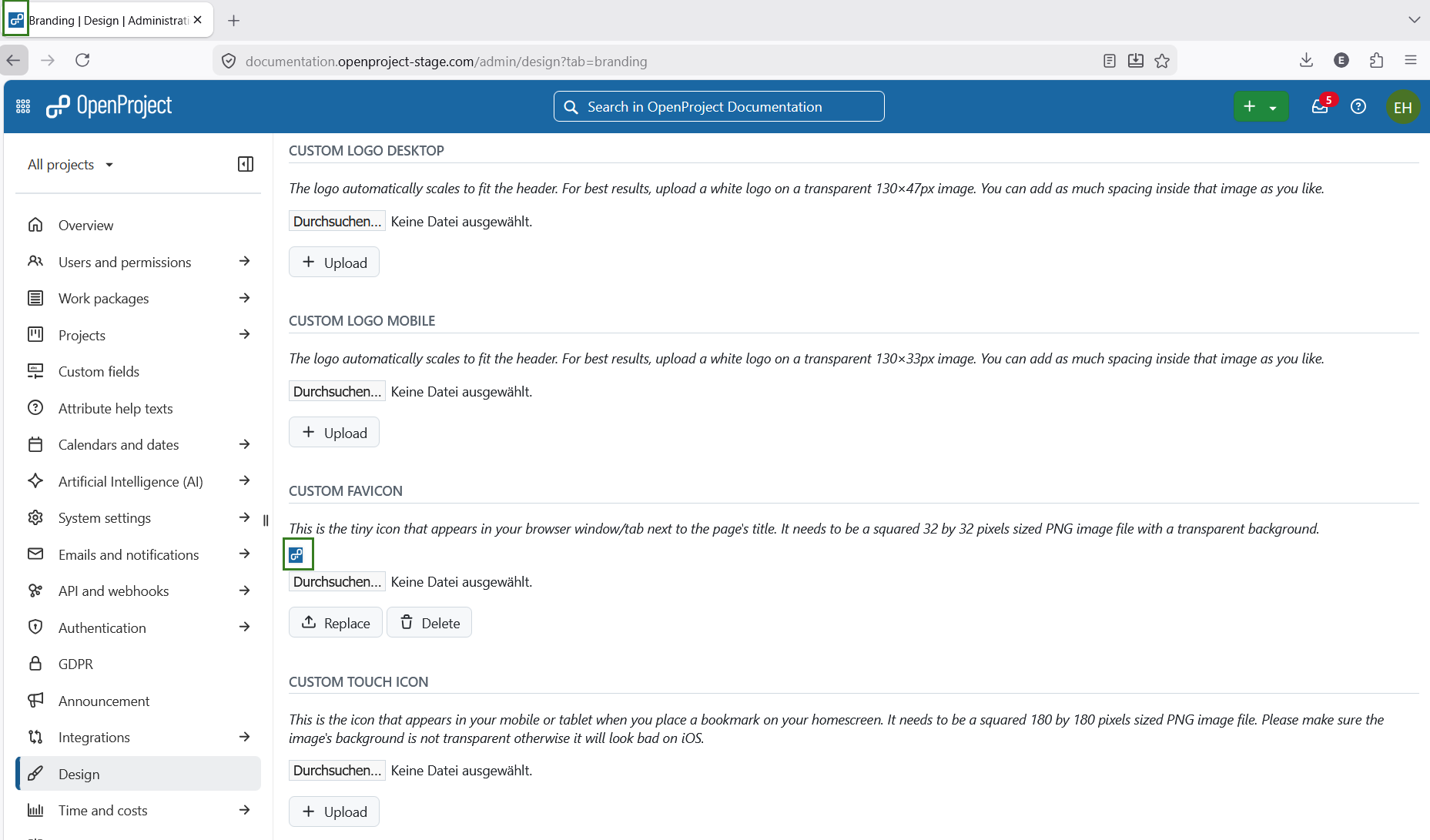

Custom favicon in OpenProject design settings

Set a custom touch icon

To set a custom touch icon that appears on your smartphone’s or tablet’s homescreen when you bookmark a page, make sure you have a PNG file with the dimensions 180 by 180 pixels. Select the Choose File button and select the file from your hard drive to upload it.

Click the Upload button to confirm and upload your custom touch icon.

When you bookmark your OpenProject environment’s URL, you will see that the uploaded icon is used as a custom touch icon.

Interface colors

Aside from uploading logos and icons, you can also customize the colors used within your OpenProject environment.

To do this, enter the hex value for any color you would like to change. You can use a website like htmlcolorcodes.com to help you find the perfect color. You can see the selected color in the preview area next to the color hex code. Therefore, it is possible to see the selected color before saving the changes.

Tip

If the button color you select is too light to have white text on top of it, the icon and text color will be displayed in black instead.

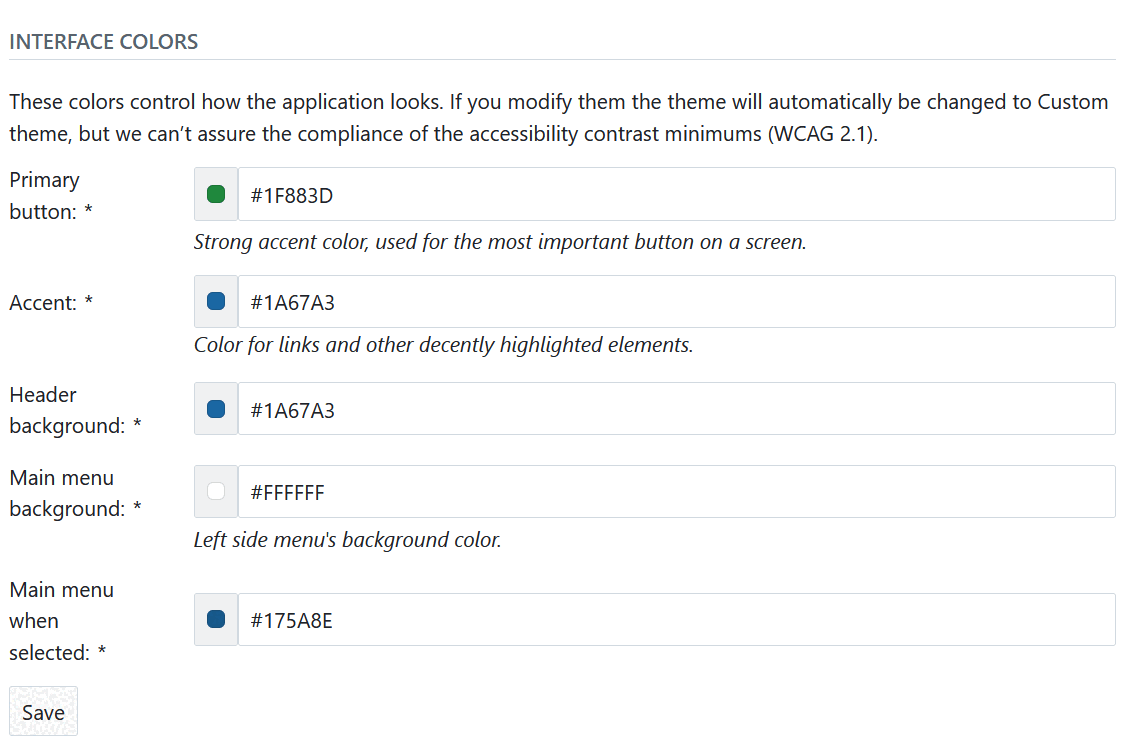

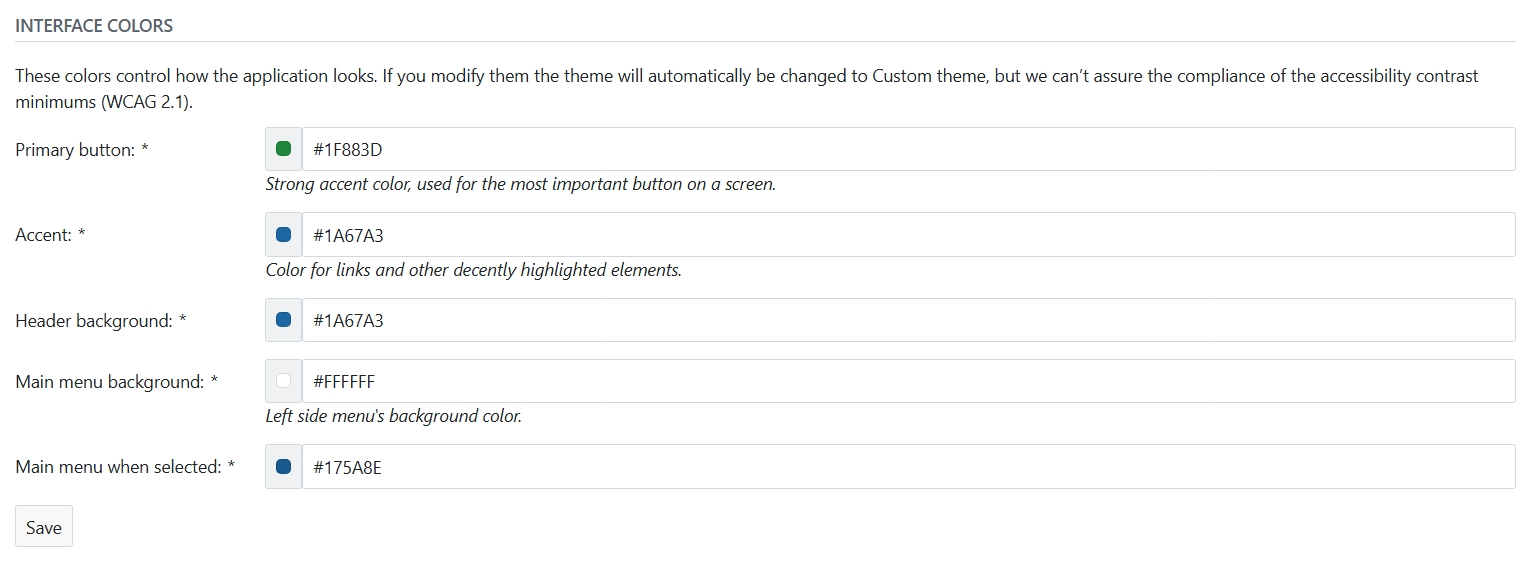

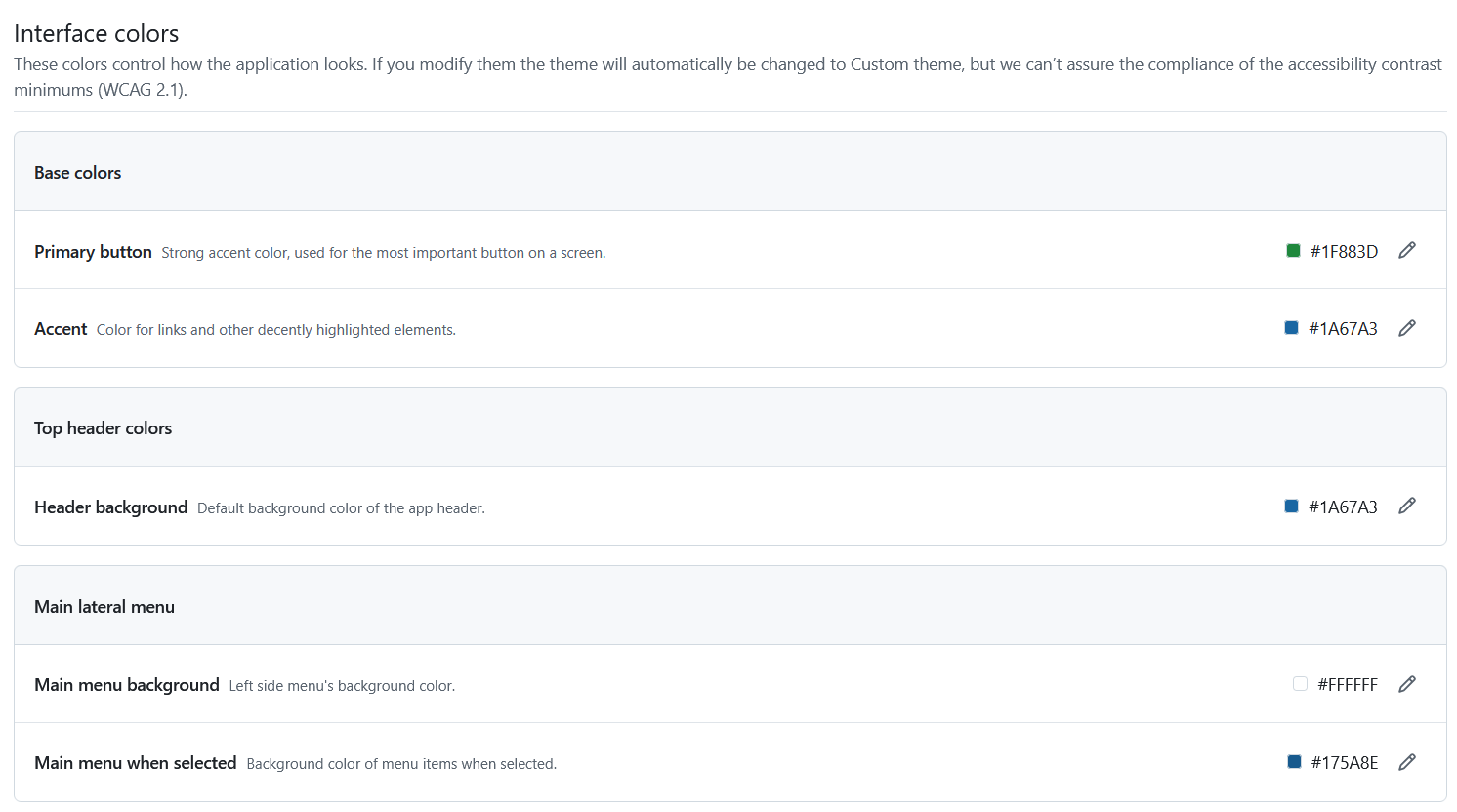

Advanced color settings in OpenProject

As soon as you press the Save button your changes are applied and the colors of your OpenProject environment are adjusted accordingly.
